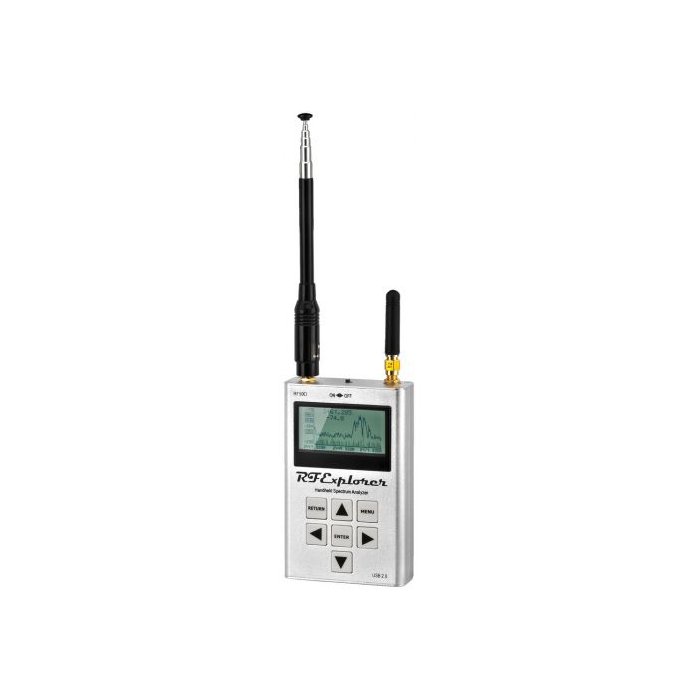

RF spektrum analyzér, 15-2,700 MHz,
v kompaktnom hliníkovom puzdre s dvomi anténami (SMA pripojenie) pre rôzne frekvenčné rozsahy. Používa sa tiež na prevenciu frekvenčných kolízií pri nastavovaní rádiových spojení v uvedenom frekvenčnom rozsahu.
- Monitorovanie použitého frekvenčného rozsahu v reálnom čase s indikáciou frekvencie a úrovne (dBm a dBµV)
- Podsvietený vysoko kontrastný grafický displej (128 x 64 pixelov)
- Funkcia automatického značkovania a manuálne polohovanie značiek pre nastavenie individuálnej nosnej frekvencie
- Špeciálny Wi-Fi analyzér s displejom 13 WLAN kanálov
- Funkcia Max Hold pre spoľahlivú detekciu veľmi krátkych nosných frekvencií RF (ďalšie režimy: normálny, max., priemer, prepísanie)
- Mini USB 2.0 rozhranie pre pripojenie k PC alebo notebooku ako aj na nabíjanie zabudovanej nabíjateľnej lítium-polymérovej batérie
(1,000 mAh)
- Dodávané s prepravnou taškou a káblom USB
- Klientský softvér s analýzou v reálnom čase pre
Windows* XP/Vista/Win7/Win8 (32-bit alebo 64-bit verziou) je možné stiahnuť na www.monacor.com
- Rozmery: 71 x 122 x 25 mm
- Hmotnosť: 210 g
EVENT Rookie 08/2016
“A real dynamic duo. The RF-EXPLORER should definitely be part of your tool case as soon as transmission technology is applied. Due to its minimum weight and compact size, it can always be close at hand ... The device provides a sufficiently accurate display. V kombinácii so softvérom však RF-EXPLORER ponúka skutočný luxus, pokiaľ ide o presnosť čítania, zobrazovanie a archiváciu.. Anyone who wants to delve deeper into the world of transmission technology, should also purchase the RF-GENERATOR. When combined with the software and RF-EXPLORER, you are able to quickly and easily set up a very efficient tracking system.”
proaudio.de 02/2013
“All in all, the RF-EXPLORER/3 can be highly recommended to anyone using wireless products. Of course, there are also other units in the range of scanners, but no other device is as mobile, functional and flexible, yet still available at such an attractive price. Thus, it can be absolutely recommended to anyone using wireless products.”
Computerbild 04/2017
“The detailed analysis of the RF-EXPLORER is a major advantage ... It is possible to scale the ranges within a spectrum as required which is clearly an advantage when using the hand-held analyser for mobile applications within a venue. However, the RF-EXPLORER reaches its full potential when used together with the software extension and a laptop.”
Wireless 2018, the RF-EXPLORER in action
I first applied the RF-EXPLORER from MONACOR to analyse and monitor the UHF frequency range at an event of the “Deutsche Sporthilfe” (German sports foundation) called “Ball des Sports” in Wiesbaden, Germany. More than 30 channels for wireless devices, both microphone links and in-ear monitoring, had to be taken care of at the production as well as additional frequencies calculated which have been used by TV and intercom. The RF-EXPLORER was used on a MacBook Pro with the software “Vantage” by RF Venue for Mac OS X. The corporate software from MONACOR is exclusively available for Windows computers.
With the applied software, it is possible to scan the required frequency ranges on a laptop which features a large and easy-to read display. The connection with the software is established via USB and the Explorer is recognised without any problems or further installations. The collected data can be exported in .cvs format which is another advantage of the RF-EXPLORER and the Vantage software. The data can directly be imported into WirelessWorkbench 6 by Shure, which is used to calculate frequencies. Therefore, the workflow is quick and straightforward.
The RF-EXPLORER can analyse the frequency range from 15 to 2,700 MHz and the 2.4 GHz band. This range is absolutely sufficient for the intended use and helps to solve existing issues with frequency calculation. Due to decreasing frequency ranges which can be used for professional wireless applications, regionally varying digital TV stations and LED panels which may be installed at events and interfere with the frequency range to be used, UHF applications become mora and more complex. The increasing number of wireless microphones, in-ear lines and other wireless devices like Telex intercom systems, still add to the situation. Therefore, new software and hardware tools like the RF-EXPLORER are required for a smooth and interference-free operation.
The comprehensive functions of the RF-EXPLORER which can be operated with different modes (normal, max, average and overwrite), the automatic marker function and the manual positioning of the marker for setting individual carrier frequencies are useful and impressive features to ensure a problem-free operation. Focussing on frequency ranges and level ranges or displaying the maximum frequency range to be used respectively by the existing devices greatly facilitate locating and monitoring other operational transmitters in the respective work environment. Thanks to the high-performance batteries, it is possible to simply walk around in search of troublemakers.
As with other data-collecting applications (e.g. levelling of PA systems), experience in interpreting the diagrams is essential because the RF-EXPLORER shows different results to frequency scans of different devices like microphone receivers or in-ear receivers at the same location.
In my opinion, a continuous use of the RF-EXPLORER will benefit your routine and enhance workflow efficiency when handling UHF devices. Thus, complex situations can be solved and managed. As far as I am concerned, I will continue to use the RF-EXPLORER by MONACOR. I look forward to using the RF-EXPLORER in the future and I am reassured to have it in my tool case.
Display: graphic display (128 x 64 pixels)
Frequency: 15-2,700 MHz
Admiss. ambient temp.: 0-40 °C
Dimensions: 71 x 122 x 25 mm
Weight: 210 g
Power supply: rech. lithium polymer battery, 1000 mAh
Special features: mini USB port
