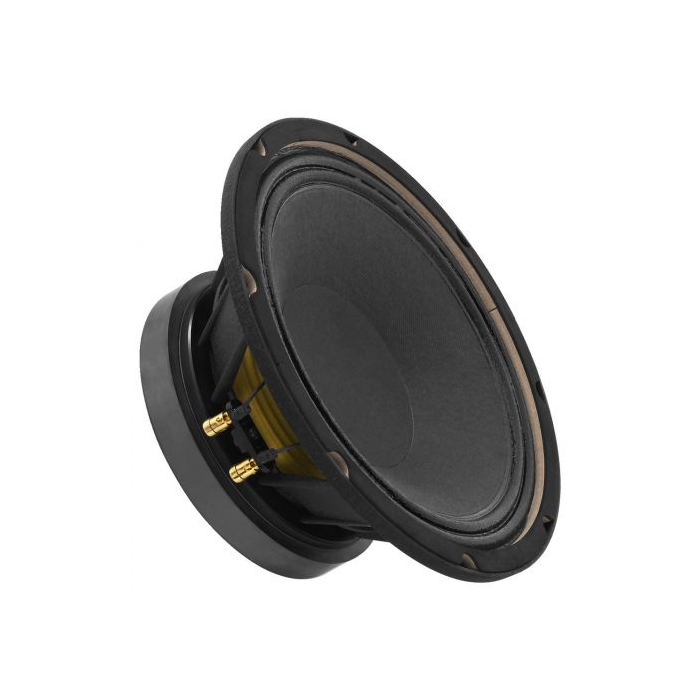

PA basový reproduktor, subwoofer, 250 W, 8 Ω
- 25 cm (10") basový reproduktor a subwoofer s vysokým výkonom
- Teplu odolná cievka a vetraný systém pohonu
- Extra dlhá exkurzia pre hlbokú reprodukciu basov pri vysokej hlasitosti
- Progresívne upínanie membrány pre vysokú prevádzkovú bezpečnosť
- Stabilný kôš z liateho hliníka
- Ideálny pre kompaktné subwoofery a 2-pásmové systémy s krížovou frekvenciou približne 1,500 Hz na výškový reproduktor
HOBBY HiFi 03/2014
"A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree."
HOBBY HiFi 02/2014
"A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres."
Klang+Ton 03/2013
"Universal Basový reproduktor for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets."
Impedance (Z): 8 Ω
Transmission technology: cable

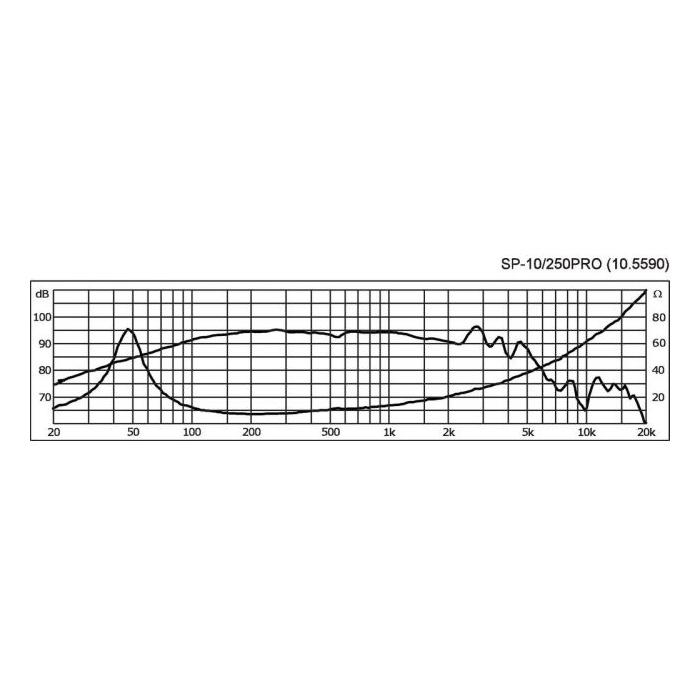

Frequency range: f3-2,000 Hz
Resonant frequency (fs): 47 Hz
Power rating (RMS): 250 W
Peak music power output (MAX): 500 W
SPL: 94 dB/W/m
Suspension compl. (Cms): 0.20 mm/N
Moving mass (Mms): 51 g
Mech. Q factor (Qms): 6.16
Electr. Q factor (Qes): 0.35
Total Q factor (Qts): 0.33
Equivalent volume (Vas): 40.7 l
DC resistance (Re): 7.1 Ω
Force factor (BxL): 18.30 Tm
Voice coil induct. (Le): 0.83 mH
Voice coil diameter: Ø 75 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 7 mm
Eff. cone area (Sd): 380 cm2
Magnet weight: 2 kg
Magnet diameter: Ø 169 mm

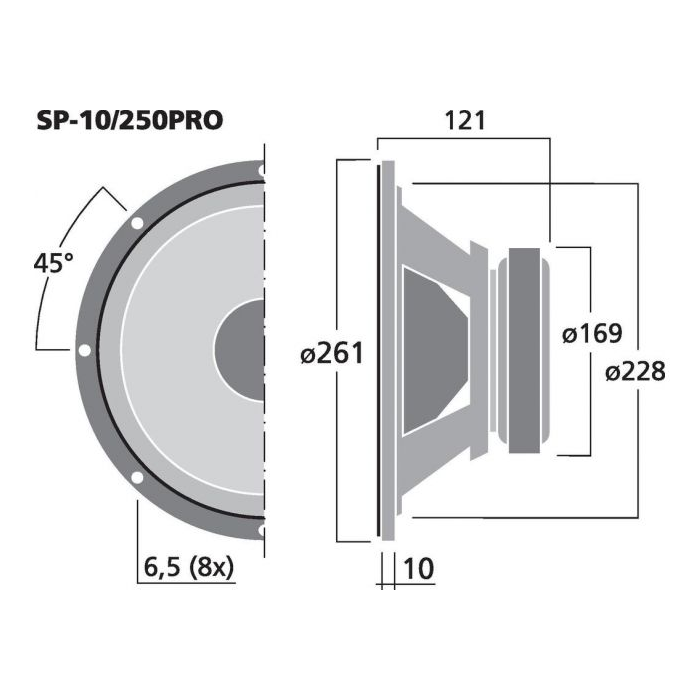

Mounting cutout: Ø 228 mm
Mounting depth: 111 mm
Dimensions: Ø 261 mm x 121 mm
Outside diameter: Ø 261 mm
Width: Ø 261 mm
Height: Ø 261 mm
Depth: 121 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 5 kg
Packing unit: 1
Type of speaker: 10"
Packaging dimensions (W x H x L): 0.28 x 0.17 x 0.28 m
Gross weight: 5.59 kg
Net weight: 5 kg
