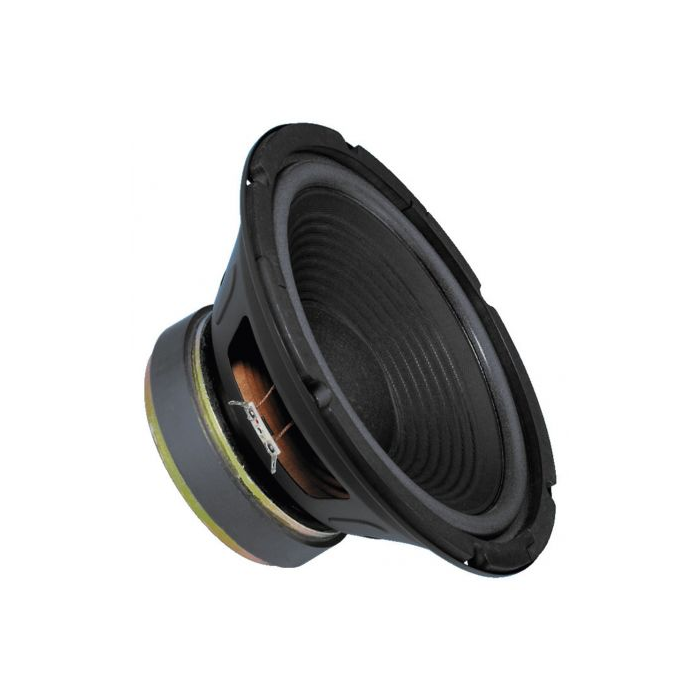

Basový reproduktor, 100 W, 8 Ω
- S vŕtaným pólovým jadrom
- Vynikajúca lineárna odchýlka pre výkonné reprodukcie basov
Impedance (Z): 8 Ω

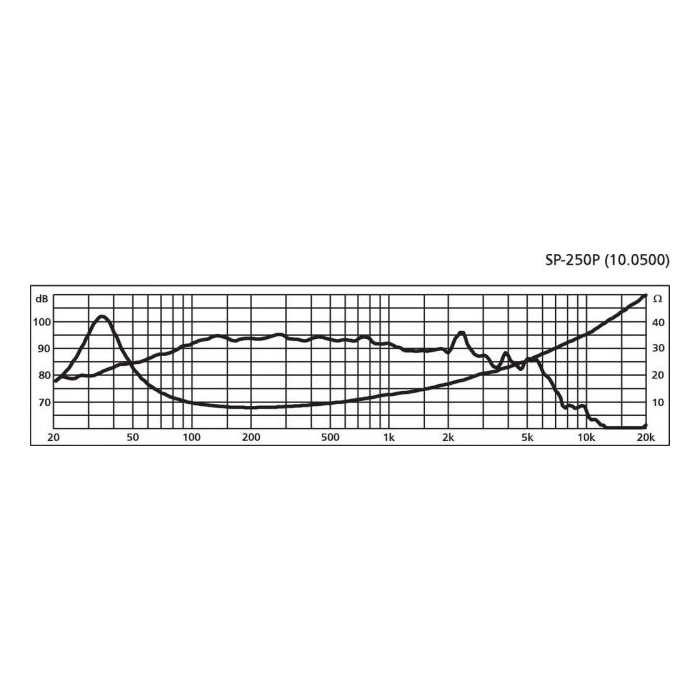

Frequency range: f3-4,000 Hz
Resonant frequency (fs): 33 Hz
Power rating (RMS): 100 W
Peak music power output (MAX): 200 W
SPL: 94 dB/W/m
Suspension compl. (Cms): 0.69 mm/N
Moving mass (Mms): 33 g
Mech. Q factor (Qms): 2.33
Electr. Q factor (Qes): 0.38
Total Q factor (Qts): 0.33
Equivalent volume (Vas): 115 l
DC resistance (Re): 6.5 Ω
Force factor (BxL): 10.80 Tm
Voice coil induct. (Le): 1.2 mH
Voice coil diameter: Ø 50 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 3.5 mm
Eff. cone area (Sd): 346 cm2
Magnet weight: 1.1 kg
Magnet diameter: Ø 145 mm

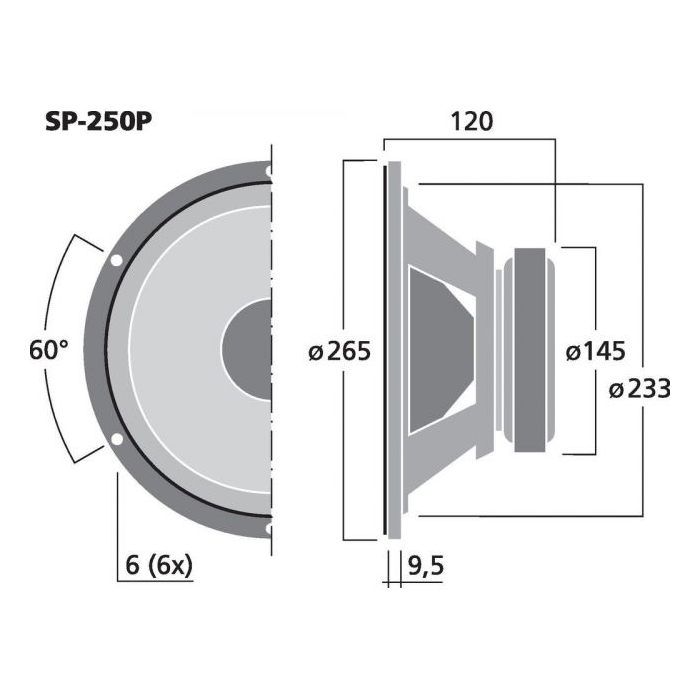

Mounting cutout: Ø 233 mm
Mounting depth: 110.5 mm
Mounting hole diameter: Ø 250 mm
Dimensions: Ø 265 mm x 120 mm
Outside diameter: Ø 265 mm
Width: Ø 265 mm
Depth: 120 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 3.34 kg
Packing unit: 1
Type of speaker: 10"
Packing dimensions (W x H x L): 0.285 x 0.145 x 0.285 m
Gross weight: 3.66 kg
Net weight: 3.34 kg
