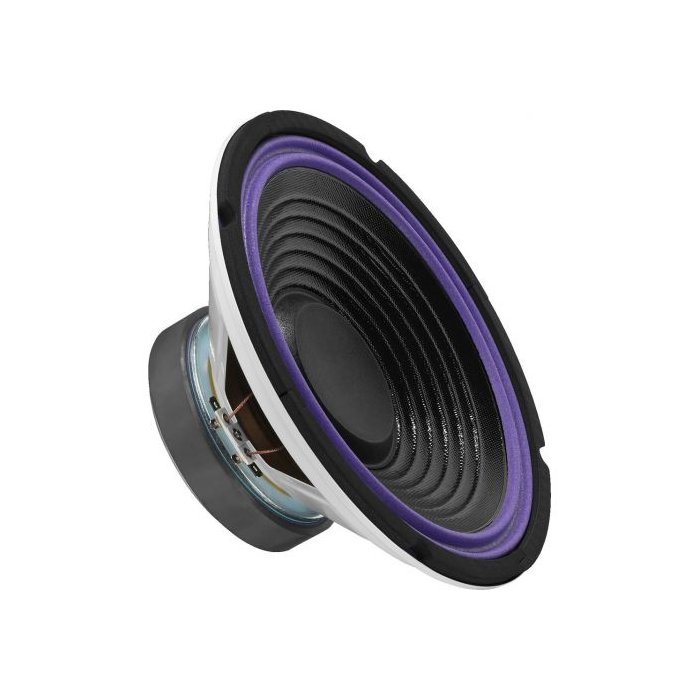

Car hi-fi basový reproduktor, 100 W, 4Ω
- 25 cm (10") basový reproduktor
- Potiahnutá membrána
- Vhodný aj pre doplnenie basov pri použití vo voľnom priestranstve
- Konštrukcia umožňujúca veľký výkyv membrány
Impedance (Z): 4 Ω
Transmission technology: cable

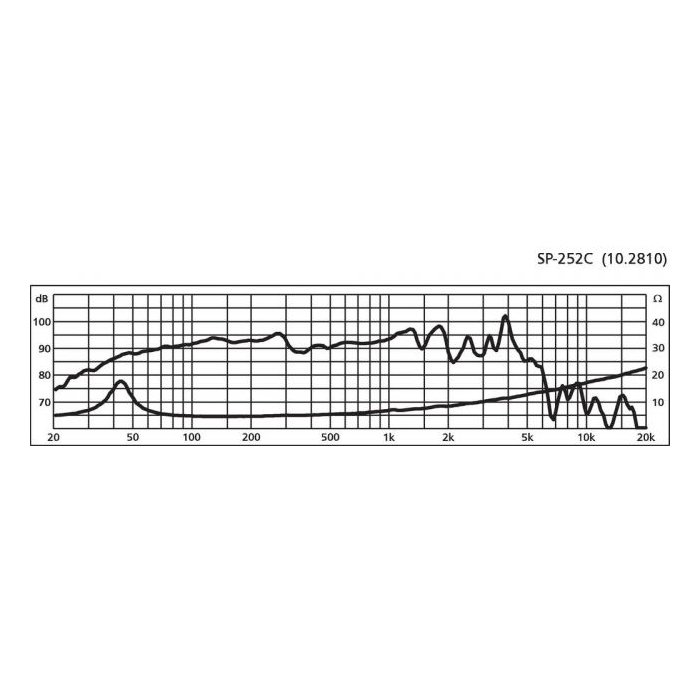

Frequency range: f3-3,500 Hz
Resonant frequency (fs): 35 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 2,000 Hz
Power rating (RMS): 100 W
Peak music power output (MAX): 200 W
SPL: 93 dB/W/m
Suspension compl. (Cms): 0.55 mm/N
Moving mass (Mms): 38 g
Mech. Q factor (Qms): 3.15
Electr. Q factor (Qes): 0.47
Total Q factor (Qts): 0.41
Equivalent volume (Vas): 96 l
DC resistance (Re): 3.7 Ω
Force factor (BxL): 8.08 Tm
Voice coil induct. (Le): 0.4 mH
Voice coil diameter: Ø 39 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 5 mm
Eff. cone area (Sd): 353 cm2
Magnet weight: 850 g
Magnet diameter: Ø 125 mm

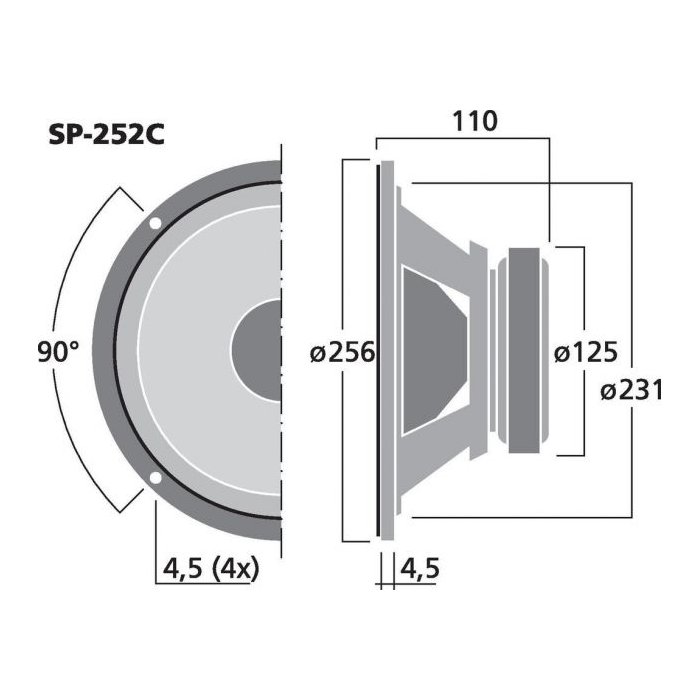

Mounting cutout: Ø 231 mm
Mounting depth: 110 mm
Dimensions: Ø 256 mm x 110 mm
Outside diameter: Ø 256 mm
Width: Ø 256 mm
Height: Ø 256 mm
Depth: 110 mm
Colour: black/violet
Admiss. ambient temp.: 0-40 °C
Weight: 2.4 kg
Packing unit: 1
Type of speaker: 10"
Packaging dimensions (W x H x L): 0.265 x 0.125 x 0.265 m
Gross weight: 2.61 kg
Net weight: 2.4 kg
