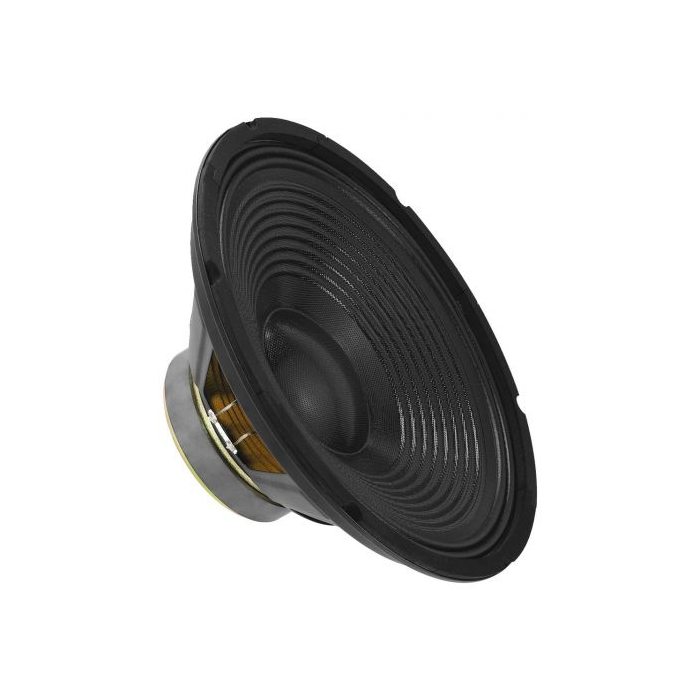

Univerzálny basový reproduktor, 100 W, 8 Ω
Pre basové aplikácie, t.j. v systémoch reproduktorov s výkonom.
Impedance (Z): 8 Ω

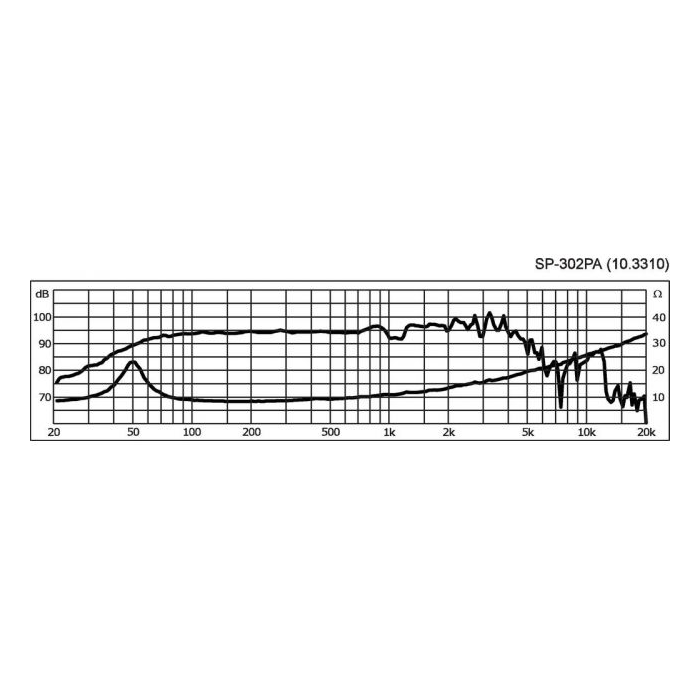

Frequency range: f3-4,000 Hz
Resonant frequency (fs): 45 Hz
Power rating (RMS): 100 W
Peak music power output (MAX): 200 W
SPL: 90 dB/W/m
Suspension compl. (Cms): 0.15 mm/N
Moving mass (Mms): 57 g
Mech. Q factor (Qms): 2.2
Electr. Q factor (Qes): 1.47
Total Q factor (Qts): 0.89
Equivalent volume (Vas): 51 l
DC resistance (Re): 7.7 Ω
Force factor (BxL): 10.50 Tm
Voice coil induct. (Le): 0.5 mH
Voice coil diameter: Ø 38 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 2.5 mm
Eff. cone area (Sd): 542 cm2
Magnet weight: 850 g
Magnet diameter: Ø 119 mm

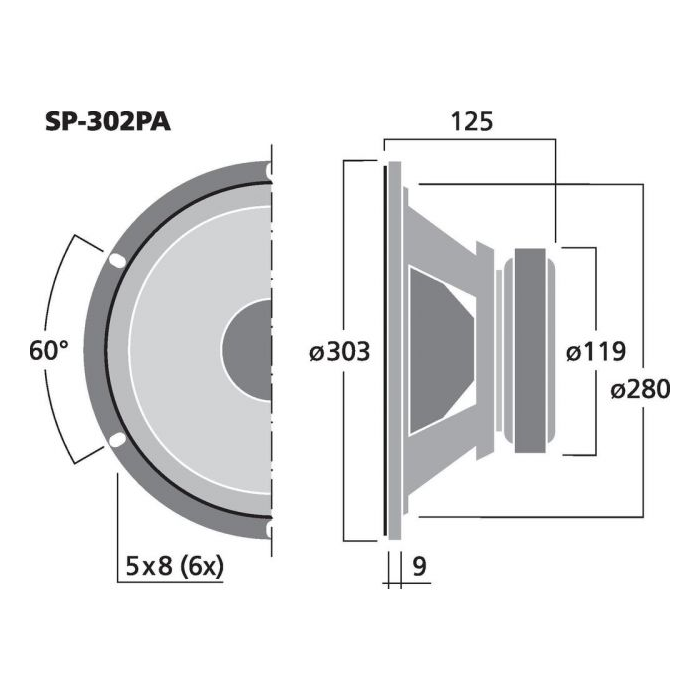

Mounting cutout: Ø 280 mm
Mounting depth: 116 mm
Dimensions: Ø 303 mm x 125 mm
Outside diameter: Ø 303 mm
Width: Ø 303 mm
Depth: 125 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.36 kg
Packing unit: 1
Type of speaker: 12"
Packing dimensions (W x H x L): 0.315 x 0.135 x 0.315 m
Gross weight: 2.5 kg
Net weight: 2.36 kg
