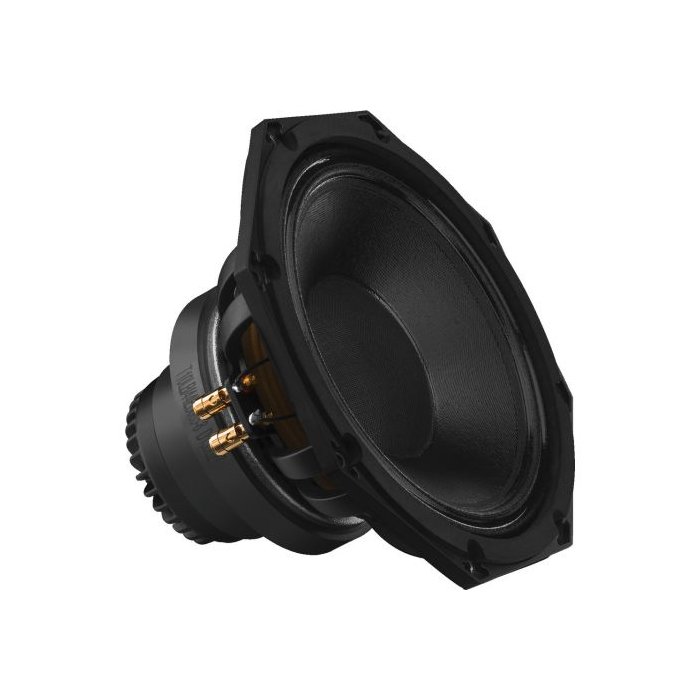

2-pásmový koaxiálny PA reproduktor,
s integrovaným horn tweeterom.
- Vysoko výkonný 25 cm PA basový reproduktor (10 ") s vysokou účinnosťou
- Koaxiálne usporiadaný výškový reproduktor s 25 mm (1 ", kmitočet cievky = 44 mm) vysokofrekvenčným meničom
- Vynikajúce zvukové vlastnosti
- Stabilný liatý kôš so zadným vetraním centrovacieho pavúka
- 64 mm (2½") žiaruvzdorná kmitacia cievka na polyamidovej kmitacej cievke (TIL)
- Vynikajúce a rovnomerné vyžarovanie
- Ideálne sa hodí pre pódiové monitory alebo veľmi kompaktné širokopásmové reproduktorové systémy
- Prevádzka povolená iba s frekvenčnou výhybkou(odporúčaná deliaca frekvencia: >1,800 Hz)
Klang+Ton 02/2016
“The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)
Klang+Ton 02/2016
The SP-310CX applied in the Studio 10, a project from K+T:
“The speaker system Studio 10 features a very neutral sound with great power reserves. Poor recordings are not enhanced, high-quality recordings show their full potential - a perfect tool!”
Klang+Ton 01/2016
“Despite its compact size, the thorough development resulted in a speaker system with a high power capability which can surely meet audiophile requirements. It is an ideal coaxial speaker for hi-fi and monitoring.”
Impedance (Z): 2 x 8 Ω

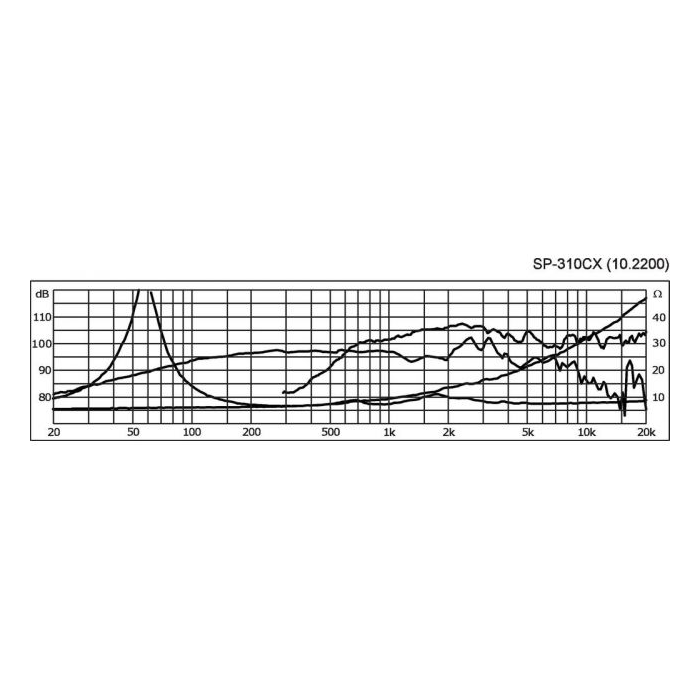

Frequency range: f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter)
Resonant frequency (fs): 60 Hz (bass), 700 Hz (tweeter)
Power rating (RMS): 200 W (bass) / 50 W (tweeter)
Peak music power output (MAX): 400 W (bass) / 100 W (tweeter)
SPL: 96 dB (bass) / 105 dB (tweeter)
Suspension compl. (Cms): 0.24 mm/N
Moving mass (Mms): 32 g
Mech. Q factor (Qms): 3.24
Electr. Q factor (Qes): 0.36
Total Q factor (Qts): 0.32
Equivalent volume (Vas): 41 l
DC resistance (Re): 5.6 Ω
Force factor (BxL): 13.30 Tm
Voice coil induct. (Le): 0.65 mH
Voice coil diameter: Ø 64 mm (bass) / Ø 44 mm (tweeter)
Voice coil former: polyimide
Linear excursion (X
MAX): ± 2.5 mm
Eff. cone area (Sd): 346 cm2
Magnet weight: 1.6 kg

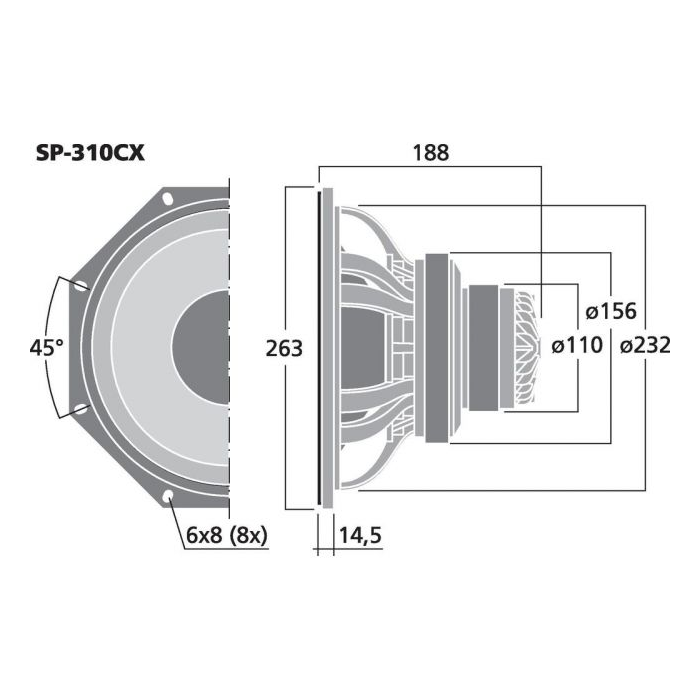

Magnet diameter: Ø 156 mm/Ø 110 mm
Mounting cutout: Ø 232 mm
Mounting depth: 173.5 mm
Dimensions: 263 x 263 x 188 mm
Width: 263 mm
Height: 263 mm
Depth: 188 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 6.24 kg
Packing unit: 1
Type of speaker: 10"
Packing dimensions (W x H x L): 0.34 x 0.25 x 0.35 m
Gross weight: 7.15 kg
Net weight: 6.24 kg
