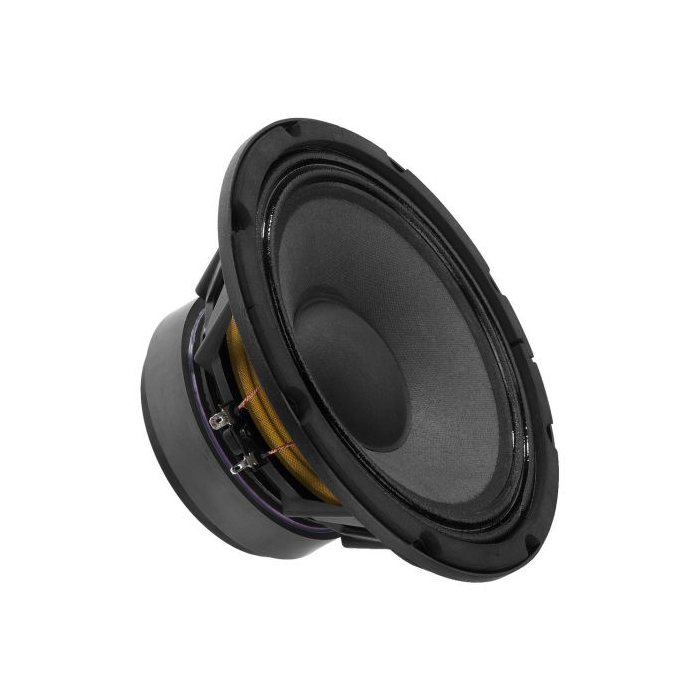

Kompaktný PA basový reproduktor, subwoofer, 150 W, 8 Ω
- 20 cm (8") basový reproduktor a subwoofer vysokého výkonu
- Žiaruvzdorná hlasová cievka a ventilovaný pohonný systém
- Extra dlhá exkurzia pre hlbokú basovú reprodukciu vysokých objemov
- Progresívne odpruženie kužeľa pre vysokú prevádzkovú spoľahlivosť
- Robustný hliníkový odliatok
- Ideálne sa hodí pre dvojpásmové systémy a kompaktné subwoofery
HOBBY HiFi 02/2019
“An excellent bass-midrange speaker with an impressive level stability for 2-way and 3-way applications. It features an excellent price-performance ratio.”
Impedance (Z): 8 Ω

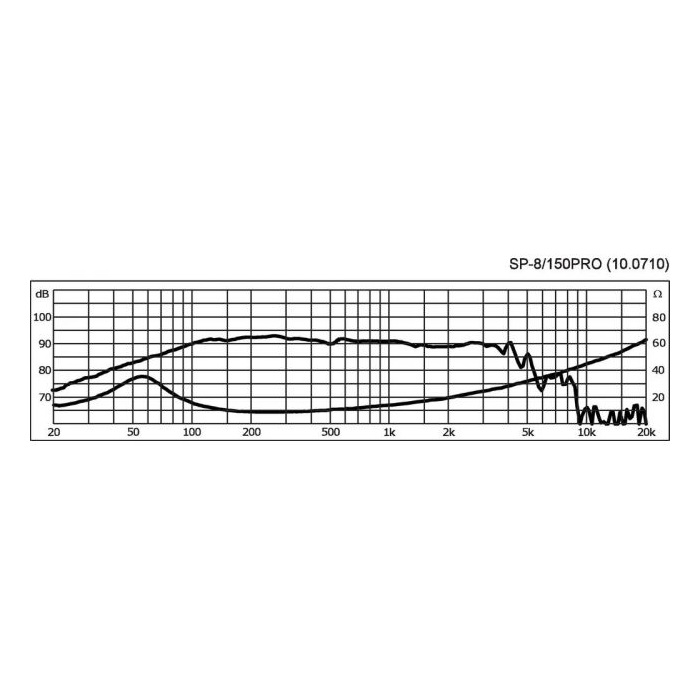

Frequency range: f3-3,000 Hz
Resonant frequency (fs): 56 Hz
Power rating (RMS): 150 W
Peak music power output (MAX): 300 W
SPL: 93 dB/W/m
Suspension compl. (Cms): 0.35 mm/N
Moving mass (Mms): 22.8 g
Mech. Q factor (Qms): 1.52
Electr. Q factor (Qes): 0.41
Total Q factor (Qts): 0.32
Equivalent volume (Vas): 22 l
DC resistance (Re): 7.2 Ω
Force factor (BxL): 11.96 Tm
Voice coil induct. (Le): 2.0 mH
Voice coil diameter: Ø 50 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 6 mm
Eff. cone area (Sd): 213 cm2
Magnet weight: 850 g
Magnet diameter: Ø 120 mm

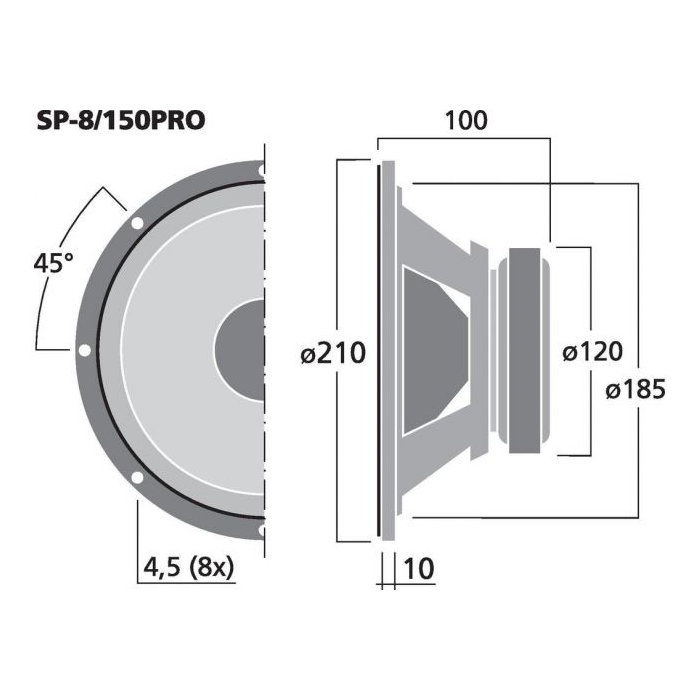

Mounting cutout: Ø 185 mm
Mounting depth: 90 mm
Dimensions: Ø 210 mm x 100 mm
Outside diameter: Ø 210 mm
Width: Ø 210 mm
Depth: 100 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.52 kg
Packing unit: 1
Type of speaker: 8"
Packing dimensions (W x H x L): 0.235 x 0.14 x 0.235 m
Gross weight: 2.74 kg
Net weight: 2.52 kg
