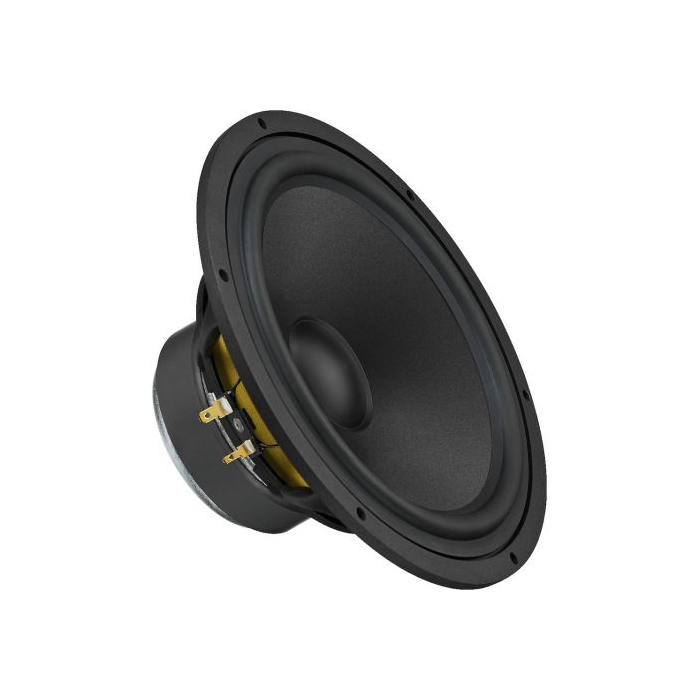

Kvalitný hi-fi basový reproduktor, 100 W, 8 Ω
- 200 mm (8") basový reproduktor
- Ďalší vývoj klasického reproduktora SPH-212

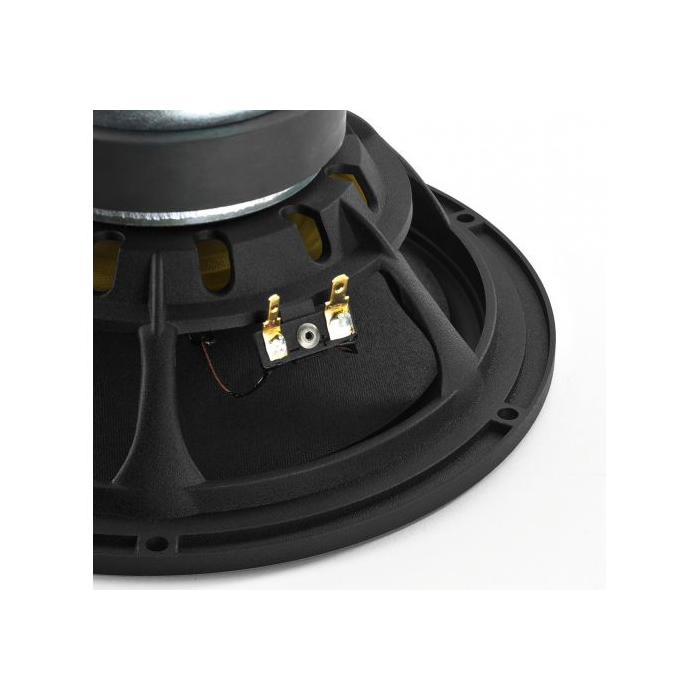

- Odliaty kôš
- Zadne vetraný centrovací pavúk a vyvŕtané pólové jadro pre minimálne mechanické straty
- Vysoko kvalitný natieraný papierový kužeľ s nízkou rezonanciou
- Nízko-stratový gumový rám
- Široký a lineárny rozsah vyžarovania
- Ideálne vhodný pre 3-cestné systémy a vhodný aj pre tradičné 2-cestné systémy v rozsahu aplikácií do 2 000 Hz a viac
HOBBY HiFi 04/2013
“Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound.”
Impedance (Z): 8 Ω

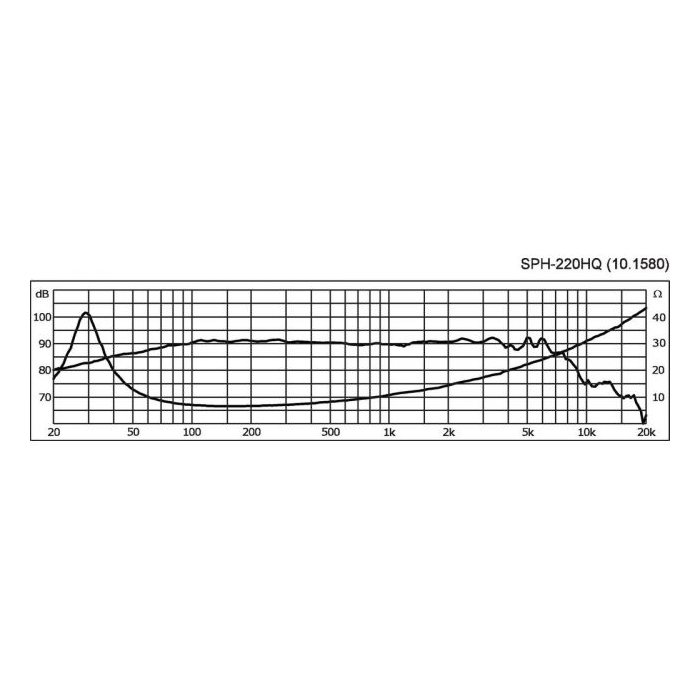

Frequency range: f3-4,000 Hz
Resonant frequency (fs): 30 Hz
Power rating (RMS): 100 W
Peak music power output (MAX): 180 W
SPL: 90 dB/W/m
Suspension compl. (Cms): 1.06 mm/N
Moving mass (Mms): 24.7 g
Mech. Q factor (Qms): 3.06
Electr. Q factor (Qes): 0.46
Total Q factor (Qts): 0.40
Equivalent volume (Vas): 80 l
DC resistance (Re): 6.1 Ω
Force factor (BxL): 7.63 Tm
Voice coil induct. (Le): 0.9 mH
Voice coil diameter: Ø 37 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 5.5 mm
Eff. cone area (Sd): 232 cm2
Magnet weight: 550 g
Magnet diameter: Ø 100 mm

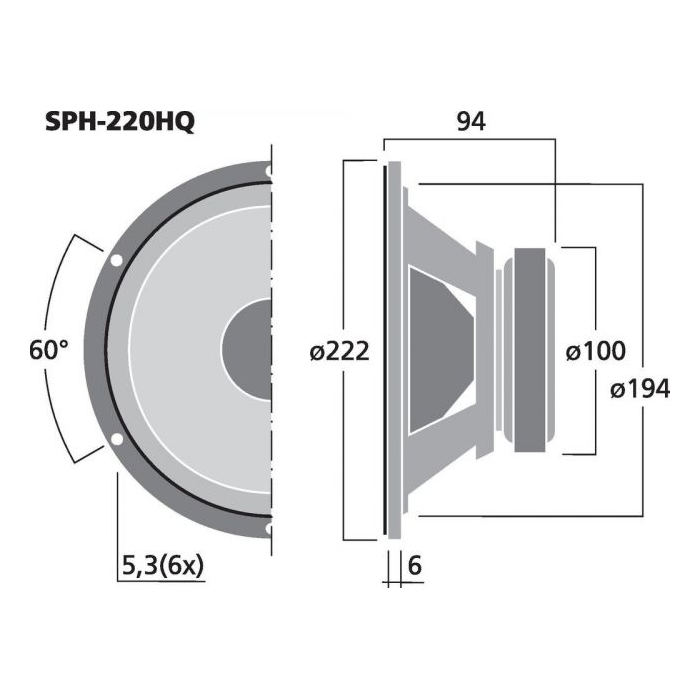

Mounting cutout: Ø 194 mm
Mounting depth: 88 mm
Mounting hole diameter: Ø 212 mm
Dimensions: Ø 222 mm x 94 mm
Outside diameter: Ø 222 mm
Width: Ø 222 mm
Depth: 94 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 1.83 kg
Packing unit: 1
Type of speaker: 8"
Packing dimensions (W x H x L): 0.25 x 0.18 x 0.25 m
Gross weight: 2.25 kg
Net weight: 1.834 kg
