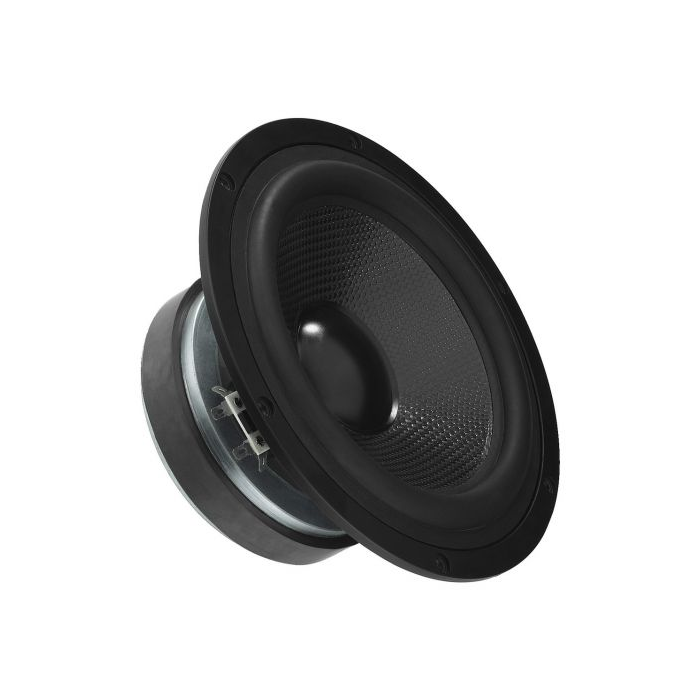

High-end basový reproduktor, 120 W, 8 Ω
- Vysoká tuhosť v membráne
- Extra dlhá exkurzia
- Malá strata a nízke skreslenie
- Pre pôsobivé základné basy v akejkoľvek vysoko kvalitnej hi-fi kombinácii a menších subwooferoch
- Možné aj ako stredobasový reproduktor v dvojpásmových kombináciách
- Vhodné pre skrinky extra malých rozmerov
Klang+Ton 06/2014
“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”
Impedance (Z): 8 Ω

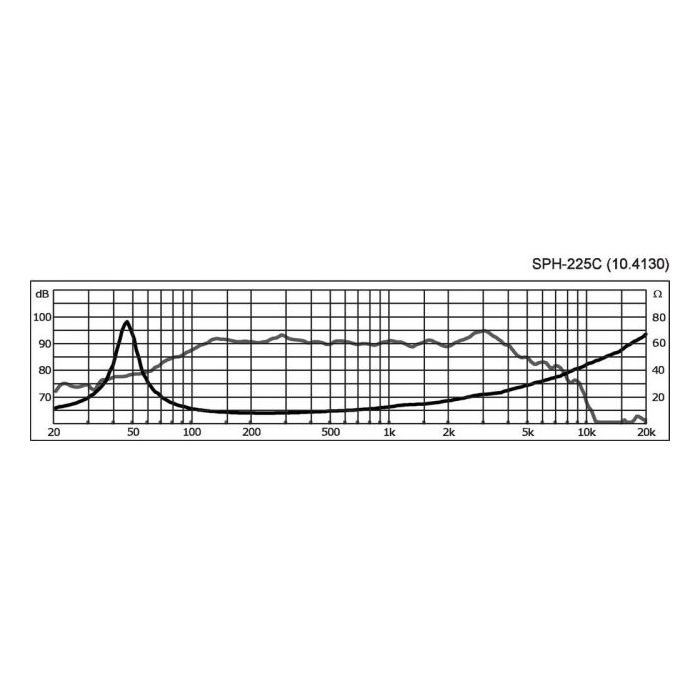

Frequency range: f3-3,000 Hz
Resonant frequency (fs): 39 Hz
Power rating (RMS): 120 W
Peak music power output (MAX): 200 W
SPL: 90 dB/W/m
Suspension compl. (Cms): 0.43 mm/N
Moving mass (Mms): 36.6 g
Mech. Q factor (Qms): 4.94
Electr. Q factor (Qes): 0.31
Total Q factor (Qts): 0.30
Equivalent volume (Vas): 24 l
DC resistance (Re): 5.9 Ω
Force factor (BxL): 13.17 Tm
Voice coil induct. (Le): 0.8 mH
Voice coil diameter: Ø 50 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 6 mm
Eff. cone area (Sd): 201 cm2
Magnet weight: 1.1 kg

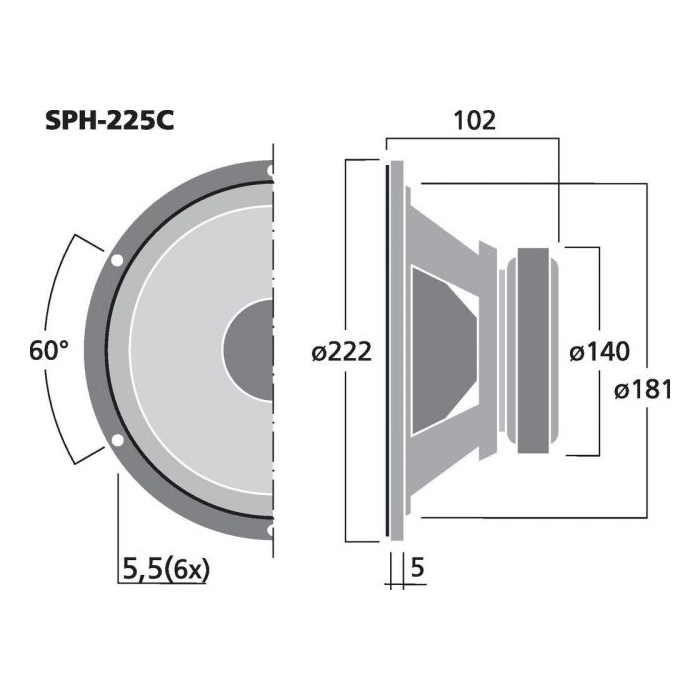

Magnet diameter: Ø 140 mm
Mounting cutout: Ø 181 mm
Mounting depth: 97 mm
Mounting hole diameter: Ø 209 mm
Dimensions: Ø 222 mm x 102 mm
Outside diameter: Ø 222 mm
Width: Ø 222 mm
Depth: 102 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 3.52 kg
Packing unit: 1
Type of speaker: 8"
Packing dimensions (W x H x L): 0.24 x 0.14 x 0.24 m
Gross weight: 3.88 kg
Net weight: 3.52 kg
