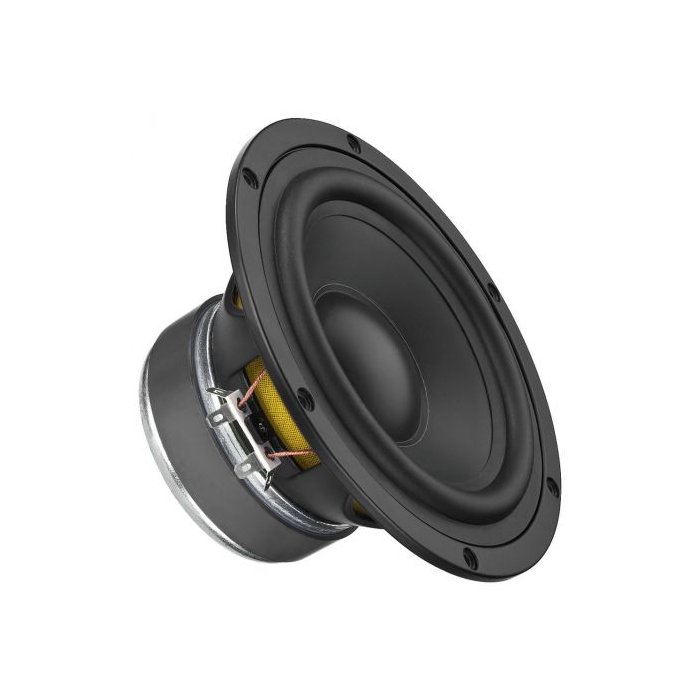

Hi-fi basový reproduktor, 60 W, 8 Ω
- Kvalitný hi-fi basový reproduktor, dlhá exkurzia
- Tlmený polypropylénový kužeľ s nízkou rezonanciou
- Robustný hliníkový odliatok v elegantnom dizajne so 6-dierovým skrutkovým pripojením
- Magnetický systém s vŕtaním do pólového jadra a rozšíreným štítom zadnej tyče
Klang+Ton 01/2014
“The 17 cm prolypropylene speaker provides a regular and very accurate signal reproduction.”
(Together with DT-350NF in the Klang+Ton speaker building concept GT6)
HOBBY HiFi 02/2012
“Amazing Basový reproduktor - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz).”
Impedance (Z): 8 Ω

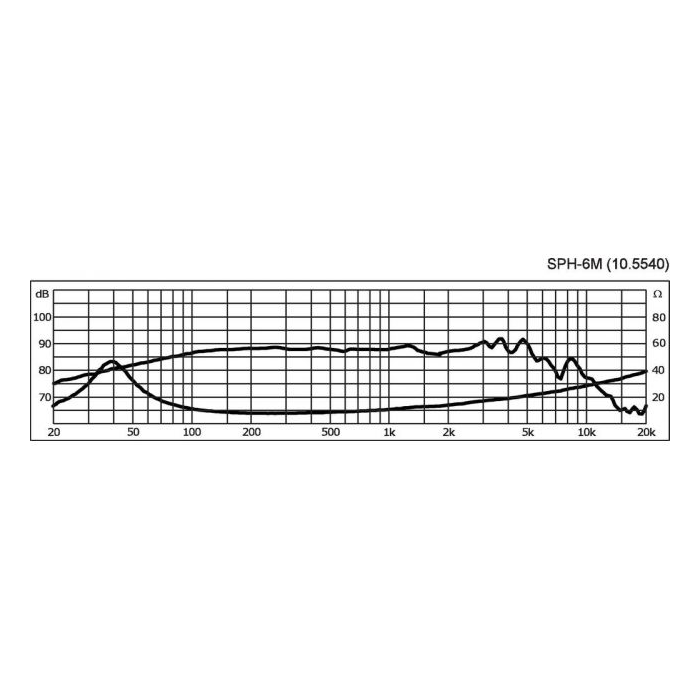

Frequency range: f3-3,000 Hz
Resonant frequency (fs): 39 Hz
Power rating (RMS): 60 W
Peak music power output (MAX): 120 W
SPL: 88 dB/W/m
Suspension compl. (Cms): 0.78 mm/N
Moving mass (Mms): 20 g
Mech. Q factor (Qms): 2.26
Electr. Q factor (Qes): 0.35
Total Q factor (Qts): 0.30
Equivalent volume (Vas): 17.6 l
DC resistance (Re): 6.33 Ω
Force factor (BxL): 9.68 Tm
Voice coil induct. (Le): 0.82 mH
Voice coil diameter: Ø 37 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 4 mm
Eff. cone area (Sd): 127 cm2
Magnet weight: 630 g
Magnet diameter: Ø 100 mm

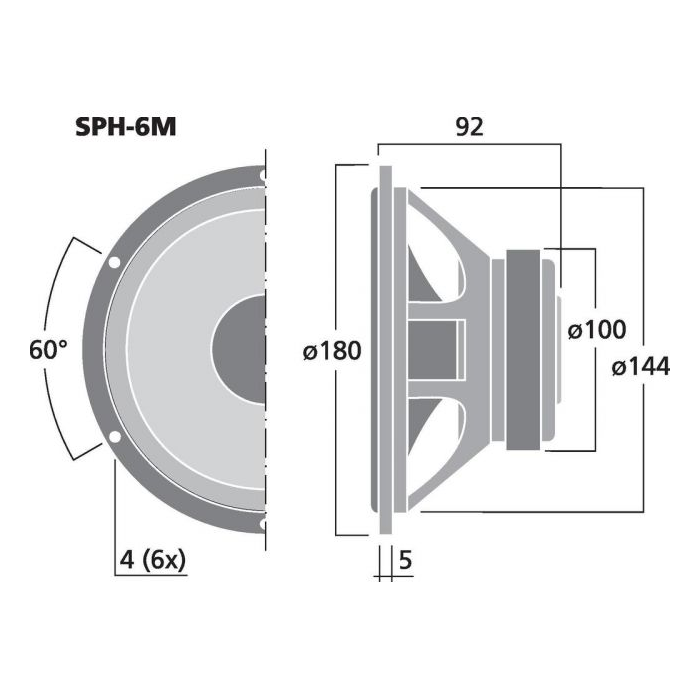

Mounting cutout: Ø 144 mm
Mounting depth: 87 mm
Dimensions: Ø 180 mm x 92 mm
Outside diameter: Ø 180 mm
Width: Ø 180 mm
Depth: 92 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.005 kg
Packing unit: 1
Type of speaker: 6.5"
Packing dimensions (W x H x L): 0.2 x 0.13 x 0.2 m
Gross weight: 2.235 kg
Net weight: 2.005 kg
