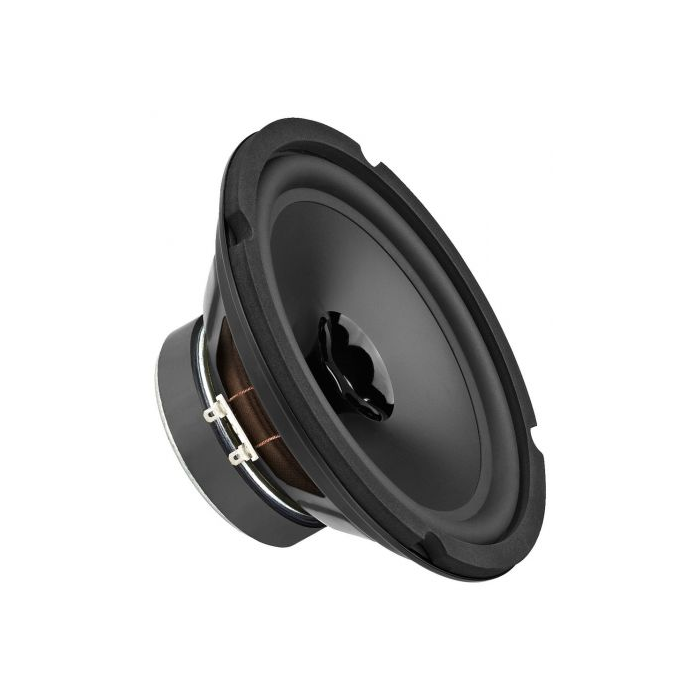

Hi-fi širokopásmový reproduktor, 50 W, 8 Ω
- Vynikajúca kvalita zvuku
- Veľmi široký frekvenčný rozsah, mierne stúpajúci k vysokým frekvenciám
- Polypropylénový kužeľ s nízkou rezonanciou a poveternostným vplyvom s gumovým okrajom
- Veľmi dobrá reprodukcia basov
- Ideálne sa hodí na použitie v uzavretých skriniach
Klang+Ton 02/2013
“Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers.”
Impedance (Z): 8 Ω
Frequency range: f3-18,000 Hz
Resonant frequency (fs): 36 Hz
Power rating (RMS): 50 W
Peak music power output (MAX): 100 W
SPL: 89 dB/W/m
Suspension compl. (Cms): 0.95 mm/N
Moving mass (Mms): 19.7 g
Mech. Q factor (Qms): 4.18
Electr. Q factor (Qes): 0.69
Total Q factor (Qts): 0.59
Equivalent volume (Vas): 60.5 l
DC resistance (Re): 7.6 Ω
Force factor (BxL): 6.79 Tm
Voice coil induct. (Le): 0.35 mH
Voice coil diameter: Ø 25 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 2 mm
Eff. cone area (Sd): 213 cm2
Magnet weight: 564 g

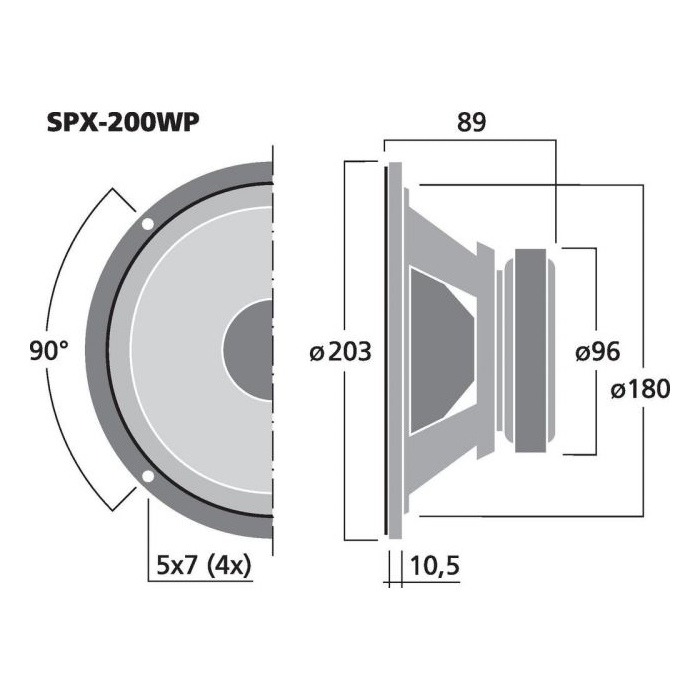

Magnet diameter: Ø 96 mm
Mounting cutout: Ø 180 mm
Mounting depth: 78.5 mm
Dimensions: Ø 203 mm x 89 mm
Outside diameter: Ø 203 mm
Width: Ø 203 mm
Depth: 99 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 1.32 kg
Packing unit: 1
Type of speaker: 8"
Packing dimensions (W x H x L): 0.215 x 0.115 x 0.215 m
Gross weight: 1.45 kg
Net weight: 1.32 kg
