With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.

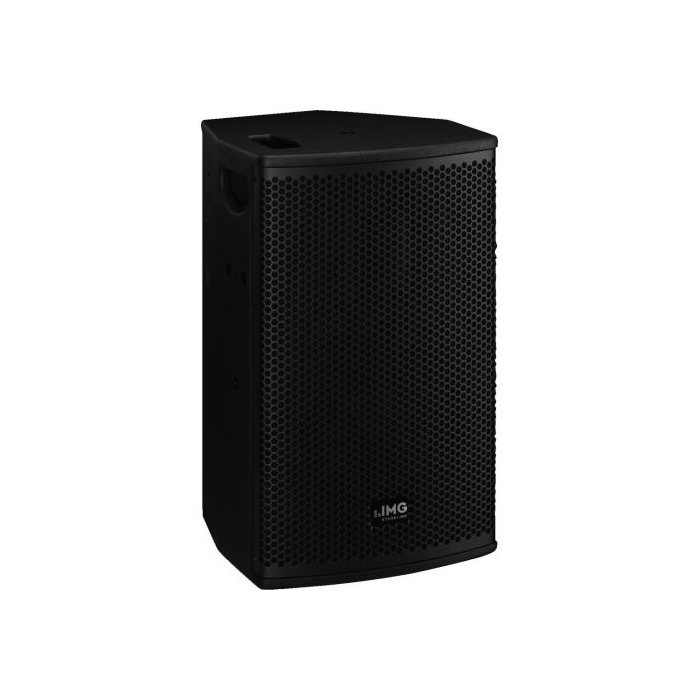

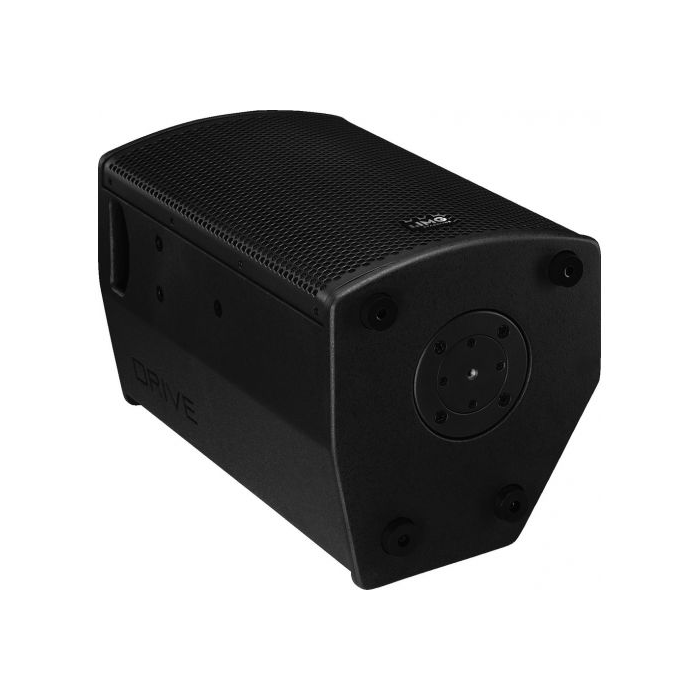

Professional PA speaker system, 300 W
- Compact 8/2 fulll range system with cabinet made of birch plywood
- 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
- Protective circuit for the tweeter
- Excellent sound characteristics
- High-quality coating and neat workmanship
- Multi-purpose positioning and installation options
- Horn tweeter with consistent radiation pattern
- M8 threaded inserts for suspended installation
- 2 x SPEAKER terminal IN/OUT
- Stand sleeve
Active/passive: passive
Transmission technology: cable
Total power rating: 300 W
Power rating (RMS): 150 W
Impedance: 8 Ω
Frequency range: 60-20,000 Hz
System: 8/2 full range
Bass speaker: 20 cm (8") bass speaker
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 2
Speaker size: 20 cm (8")
SPL: 98 dB/W/m
Max. rated SPL: 121 dB
Radiation angle/beam angle: H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal: 90°
Radiation angle, vertical: 60°
Housing material: birch plywood
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Admiss. ambient temp.: 0-40 °C
Dimensions: 270 x 460 x 290 mm
Width: 270 mm
Height: 460 mm
Depth: 290 mm
Weight: 8.43 kg

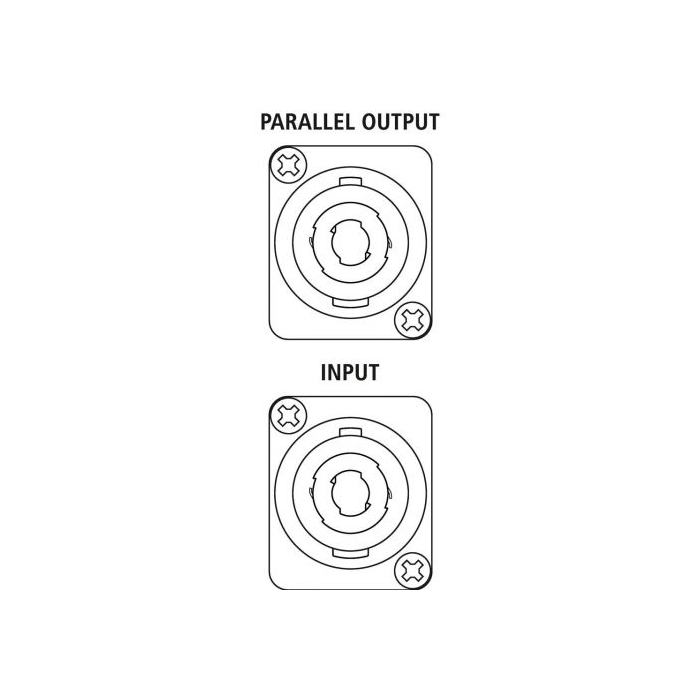

Inputs: 1 x SPEAKER jack
Outputs: 1 x SPEAKER jack par. out
Packing dimensions (W x H x L): 0.4 x 0.58 x 0.39 m
Gross weight: 11.5 kg
Net weight: 8.43 kg
