With the DRIVE series
you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjustment for any kind of application. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional active DSP speaker system with 2-channel amplifier, 350 W

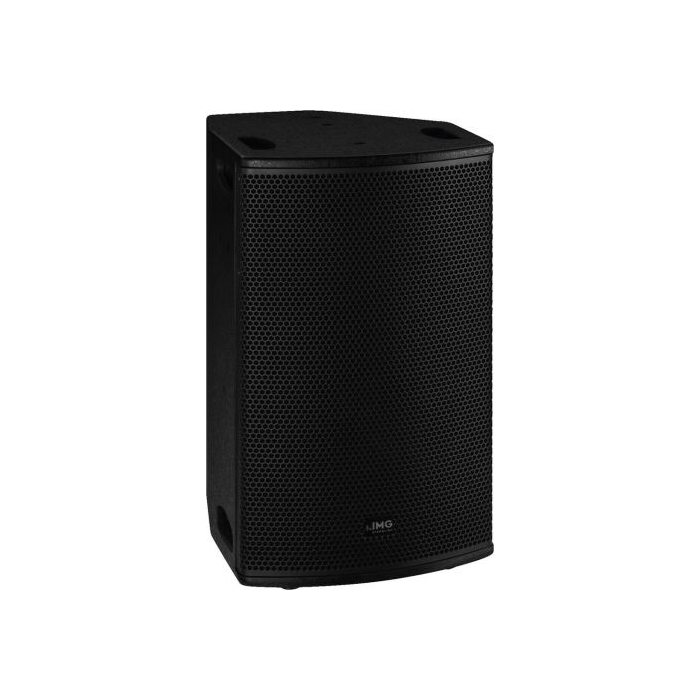

- Compact 12/2 full range system with cabinet made of birch plywood
- DSP-controlled 2-channel amplifier (bass: class D, tweeter: class A/B)

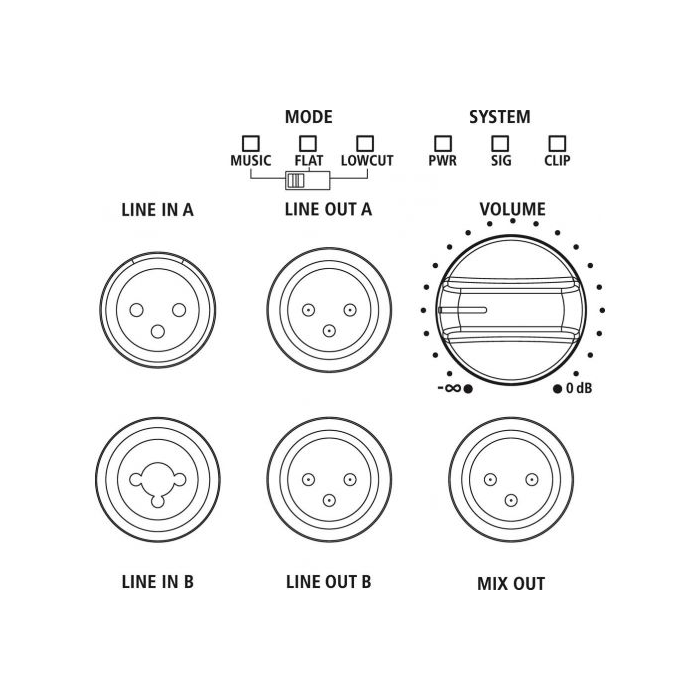

- 3 selectable presets
- FLAT (linear adjustment)
- MUSIC (slightly raised bass and treble)
- LOW CUT (with high-pass filter for application with an additional subwoofer)
- 30 cm (12") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
- Excellent sound characteristics
- High-quality coating and neat workmanship
- Multi-purpose positioning and installation options
- Horn tweeter with consistent radiation pattern
- M8 threaded inserts for suspended installation, stand sleeve
- Volume control

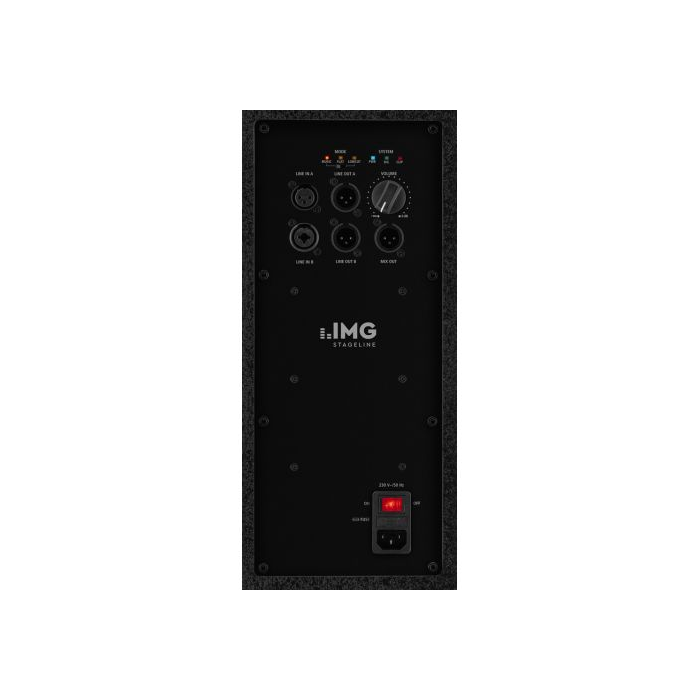

- 2 x balanced line in
- 2 x parallel line out
- 1 x balanced mix out
- Power and clip indicator
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.
Active/passive: active
Transmission technology: cable
Total output power: 700 W
Power rating (RMS): DSP-controlled 350 W (290 + 60) bass: 290 W treble: 60 W
Frequency range: 45-20,000 Hz
Input signal: 790 mV/40 kΩ (line, bal.)
System: 12/2 full range
Bass speaker: 30 cm (12") bass speaker
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 2
Speaker size: 30 cm (12")
SPL: 98 dB/W/m
Max. rated SPL: 124 dB
Radiation angle/beam angle: H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal: 90°
Radiation angle, vertical: 60°
Housing material: birch plywood
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Admiss. ambient temp.: 0-40 °C
Power supply: ˜ 230 V/50 Hz/510 VA
Dimensions: 360 x 620 x 380 mm
Width: 360 mm
Height: 620 mm
Depth: 380 mm
Weight: 17.04 kg
Inputs: 1 x comb. XLR/6.3 mm: line 1 x XLR: line
Outputs: 2 x XLR par. out 1 x XLR mix out
Other features: DSP-controlled limiter 3 selectable presets
Packaging dimensions (W x H x L): 0.46 x 0.74 x 0.48 m
Gross weight: 21.66 kg
Net weight: 17.04 kg
