With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.

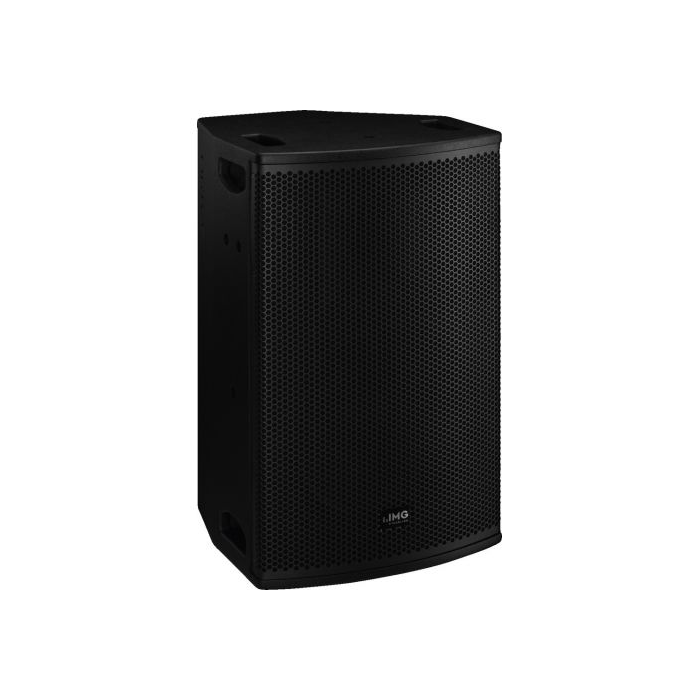

Professional PA speaker system, 500 W
- Compact 12/2 fulll range system with cabinet made of birch plywood
- 30 cm (12") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
- Protective circuit for the tweeter
- Excellent sound characteristics
- High-quality coating and neat workmanship
- Multi-purpose positioning and installation options
- Horn tweeter with consistent radiation pattern

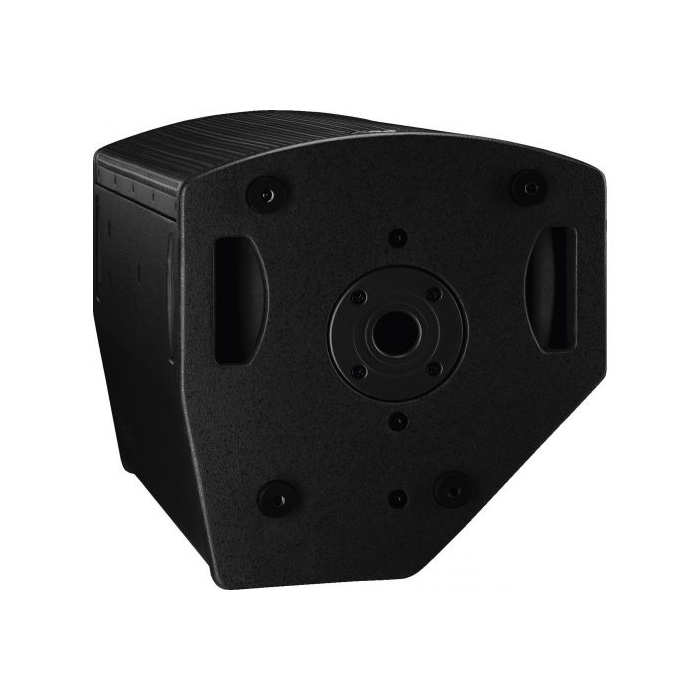

- M8 threaded inserts for suspended installation

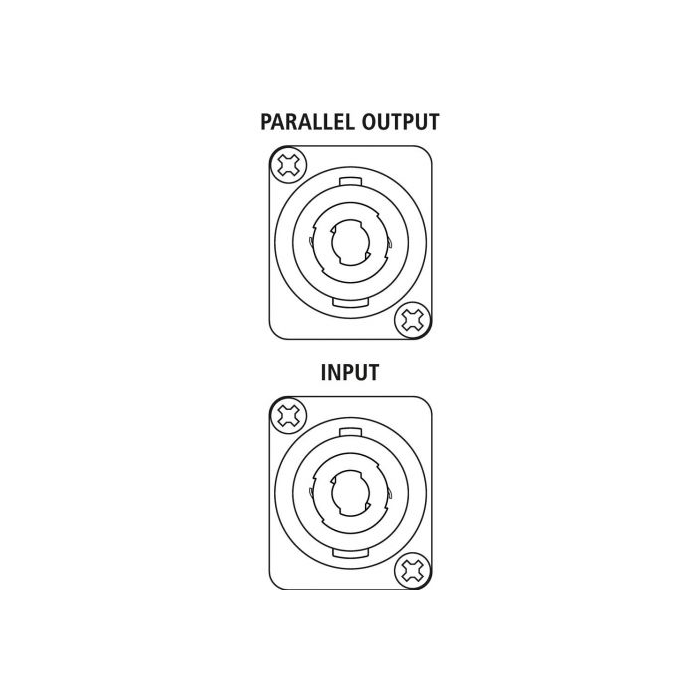

- 2 x SPEAKER terminal IN/OUT
- Stand sleeve
Active/passive: passive
Transmission technology: cable
Total power rating: 500 W
Power rating (RMS): 250 W
Impedance: 8 Ω
Frequency range: 45-20,000 Hz
System: 12/2 full range
Bass speaker: 30 cm (12") bass speaker
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 2
Speaker size: 30 cm (12")
SPL: 98 dB/W/m
Max. rated SPL: 123 dB
Radiation angle/beam angle: H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal: 90°
Radiation angle, vertical: 60°
Housing material: birch plywood
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Admiss. ambient temp.: 0-40 °C
Dimensions: 360 x 620 x 380 mm
Width: 360 mm
Height: 620 mm
Depth: 380 mm
Weight: 15.9 kg
Inputs: 1 x SPEAKER jack
Outputs: 1 x SPEAKER jack par. out
Packing dimensions (W x H x L): 0.49 x 0.77 x 0.47 m
Gross weight: 20.52 kg
Net weight: 15.9 kg
