With the DRIVE series
you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjustment for any kind of application. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional active DSP speaker system with 2-channel amplifier, 360 W

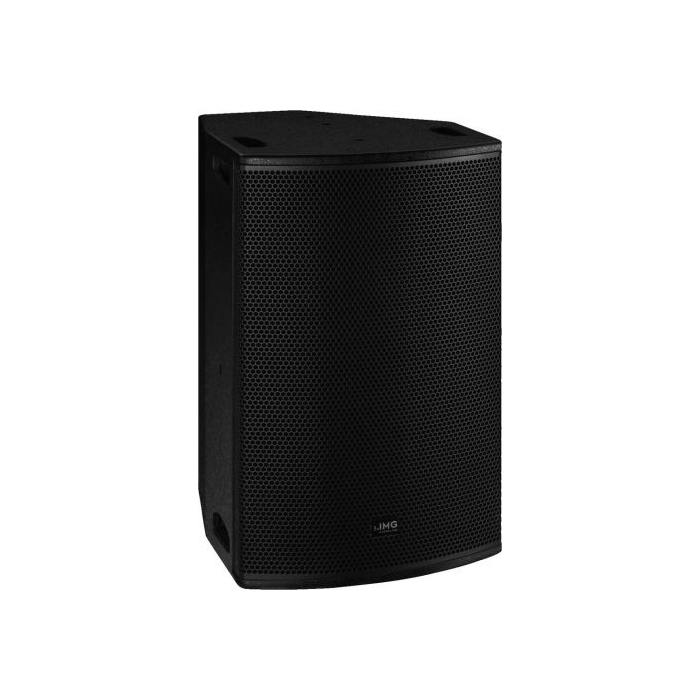

- Compact 15/2 full range system with cabinet made of birch plywood
- DSP-controlled 2-channel amplifier (bass: class D, tweeter: class A/B)
- 3 selectable presets
- FLAT (linear adjustment)
- MUSIC (slightly raised bass and treble)
- LOW CUT (with high-pass filter for application with an additional subwoofer)
- 38 cm (15") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
- Excellent sound characteristics
- High-quality coating and neat workmanship
- Multi-purpose positioning and installation options
- Horn tweeter with consistent radiation pattern
- M8 threaded inserts for suspended installation, stand sleeve
- Volume control

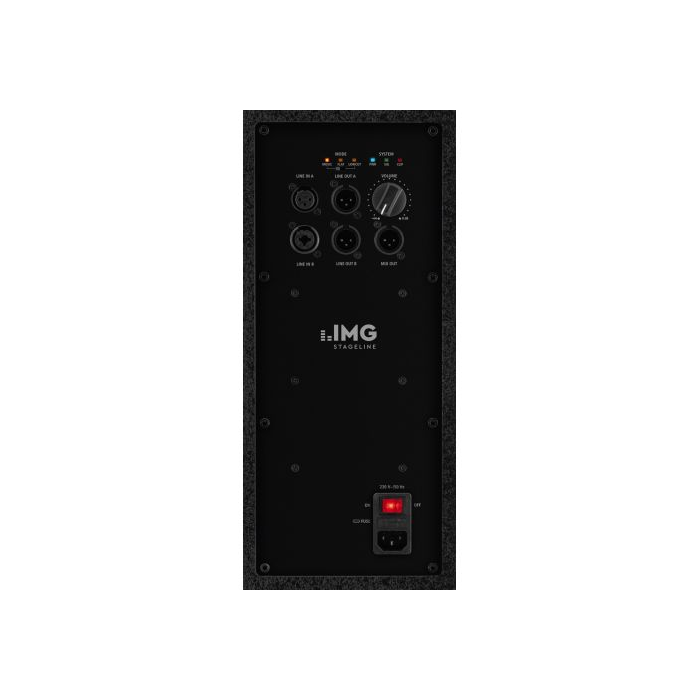

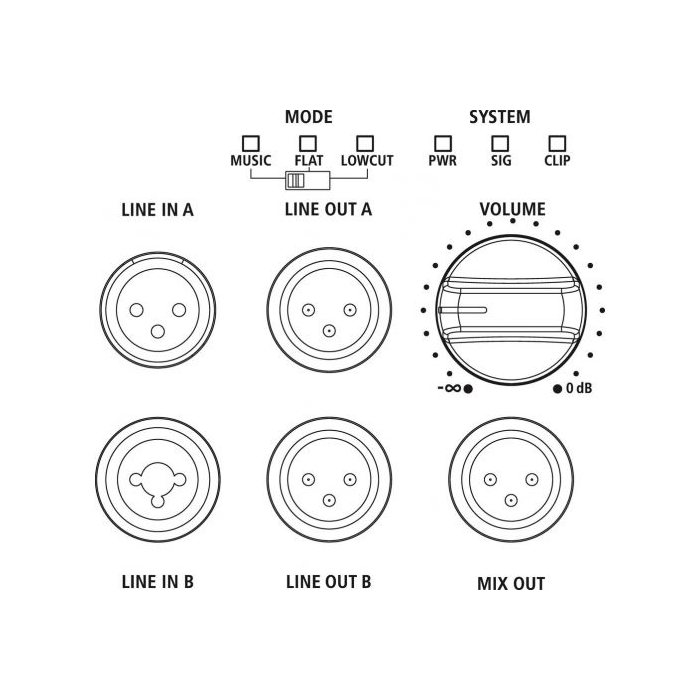

- 2 x balanced line in
- 2 x parallel line out
- 1 x balanced mix out
- Power and clip indicator
Active/passive: active
Transmission technology: cable
Total output power: 750 W
Power rating (RMS): DSP-controlled 360 W (300 + 60) bass: 300 W treble: 60 W
Frequency range: 40-20,000 Hz
Input signal: 790 mV/40 kΩ (line, bal.)
System: 15/2 full range
Bass speaker: 38 cm (15") bass speaker
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 2
Speaker size: 38 cm (15")
SPL: 98 dB/W/m
Max. rated SPL: 125 dB
Radiation angle/beam angle: H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal: 90°
Radiation angle, vertical: 60°
Housing material: birch plywood
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Admiss. ambient temp.: 0-40 °C
Power supply: ˜ 230 V/50 Hz/550 VA
Dimensions: 415 x 695 x 455 mm
Width: 415 mm
Height: 695 mm
Depth: 455 mm
Weight: 22.04 kg
Inputs: 1 x comb. XLR/6.3 mm: line 1 x XLR: line
Outputs: 2 x XLR par. out 1 x XLR mix out
Other features: DSP-controlled limiter 3 selectable presets
Packing dimensions (W x H x L): 0.56 x 0.81 x 0.52 m
Gross weight: 28.07 kg
Net weight: 22.04 kg
