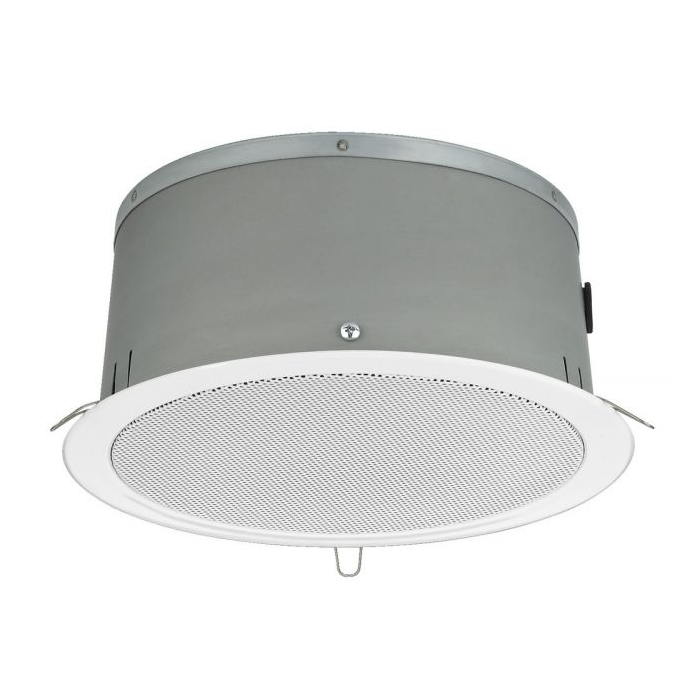

PA ceiling speaker,
with EN 54-24 certification.
- 100 V transmission technology
- Full range speaker with a very high efficiency and high maximum volume level
- Metal housing
- Fire protection cover
- Quick mounting facility

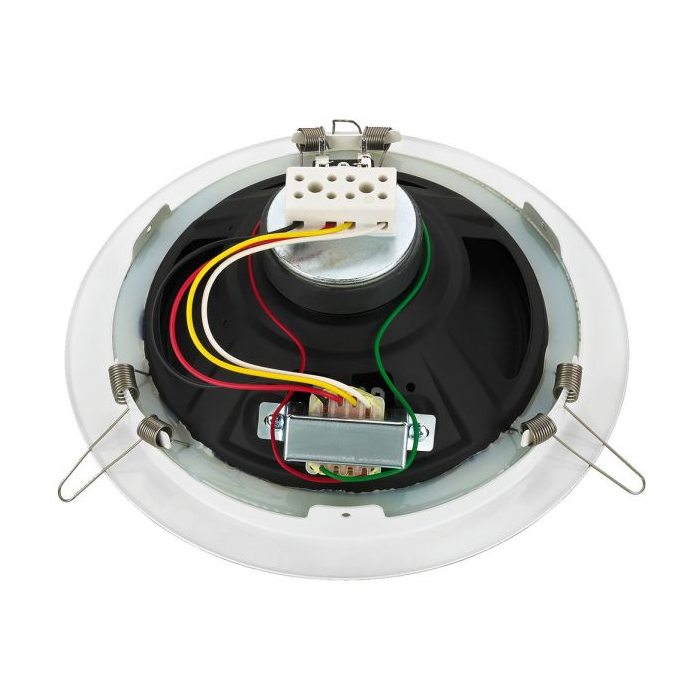

- 3 power taps via push terminals
- Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Transmission technology: 100 V
Frequency range: 70-19,000 Hz
Power rating (RMS): 6/3/1.5 W
SPL: 98 dB (1 W/1 m) 81 dB (EN, 1 W/4 m)
Max. rated SPL: 106 dB (1 m) 90 dB (EN, 4 m)
Radiation angle, horizontal: 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz)
Radiation angle, vertical: 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz)
Mounting cutout: Ø 230 mm
Mounting depth: 110 mm
Dimensions: Ø 252 mm x 110 mm
Outside diameter: Ø 252 mm
Width: Ø 252 mm
Height: Ø 252 mm
Depth: 110 mm
Colour: white
Admiss. ambient temp.: 0-40 °C
Weight: 1.8 kg
Packing unit: 1
Type of speaker: 200
Packaging dimensions (W x H x L): 0.28 x 0.13 x 0.28 m
Gross weight: 2.005 kg
Net weight: 1.81 kg
