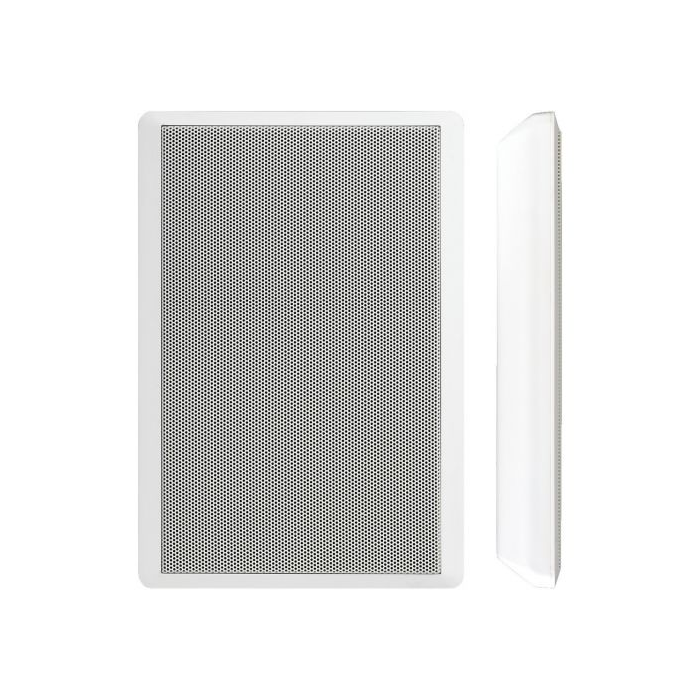

These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems.
The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of only 38 mm, they are of such a flat design, that they are just as unobtrusive on the wall as a flush-mount speaker.
PA wall speaker
- 100 V line technique via audio transformer with 3 W and 6 W power taps or 4 Ω operation (20 W)
- 2-way system with neodymium bass-midrange speaker and dome tweeter
- White plastic cabinet with protective metal grille
- Slimline design for unobtrusive wall mounting
Active/passive: passive
Transmission technology: 100 V or low-impedance
Power rating (RMS): 6/3 W (100 V) 20 W (4 Ω)
Impedance: 4 Ω
Frequency range: 80-18,000 Hz
System: 2-way
Number of speakers: 2
Speaker size: 130
SPL: 91 dB/W/m
Max. rated SPL: 104 dB
Radiation angle/beam angle: H: 100°/V: 60°
Radiation angle, horizontal: 100°
Radiation angle, vertical: 60°
Housing material: plastic
Colour: white
Mounting device: attachment via screw
Admiss. ambient temp.: 0-40 °C
Dimensions: 185 x 275 x 38 mm
Width: 185 mm
Height: 275 mm
Depth: 38 mm
Weight: 1.25 kg
Inputs: spring-loaded terminal
Packing dimensions (W x H x L): 0.075 x 0.225 x 0.315 m
Gross weight: 1.375 kg
Net weight: 1.255 kg
