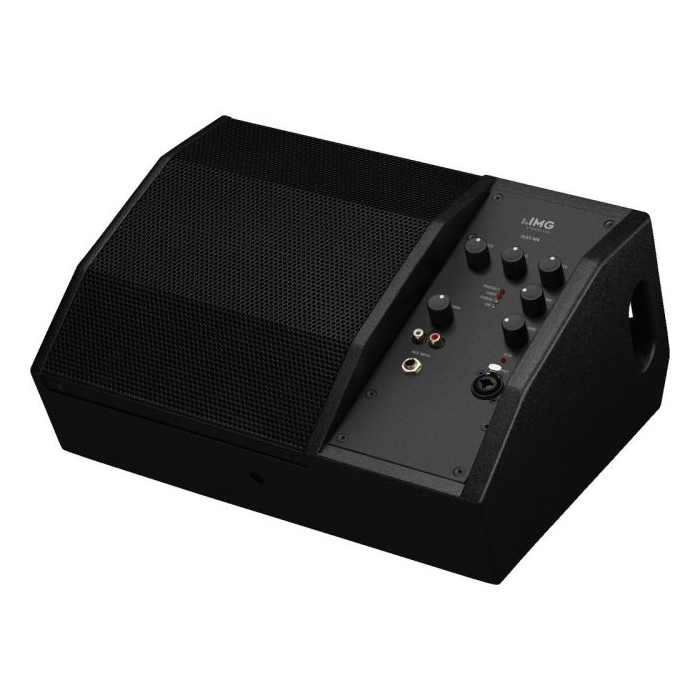

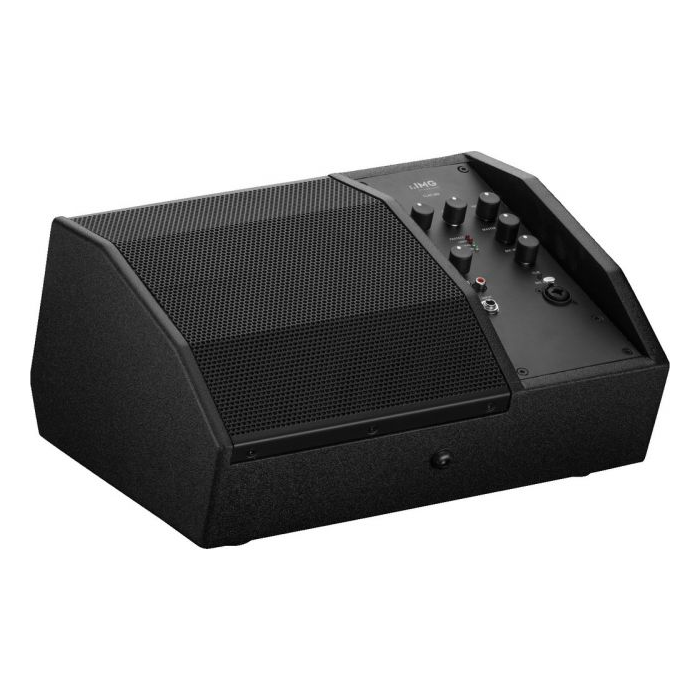

Active PA stage monitor speaker system, 300 W
- Flat and very compact full range system
- Fitted with a 20 cm (8") coaxial speaker with horn tweeter
- Class D amplifier system
- Sound pressure at nominal power: 121 dB
- Indication of protect, limiter, signal and power-on

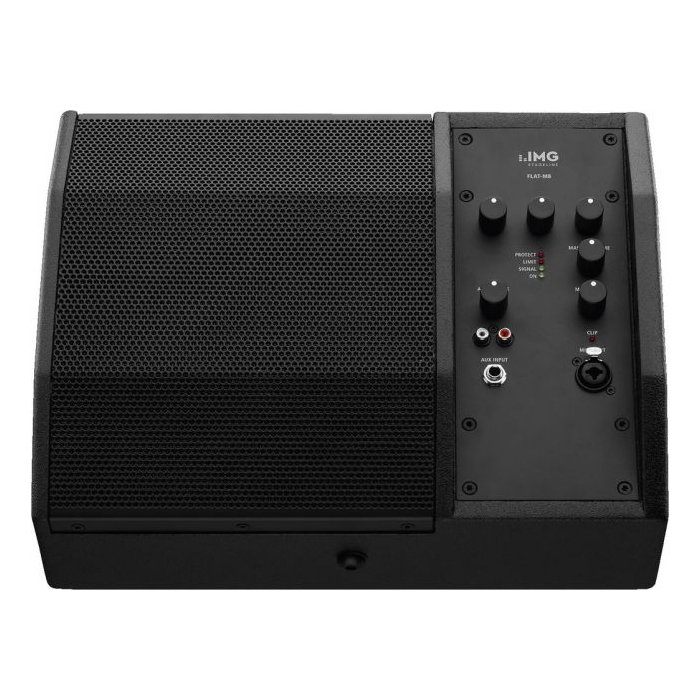

- Volume control and 3-way tone control (bass, midrange and treble)
- Balanced line/mic input and feed-through output
- Unbalanced line input RCA L/R or 6.3 mm jack
- Switchable automatic power-off

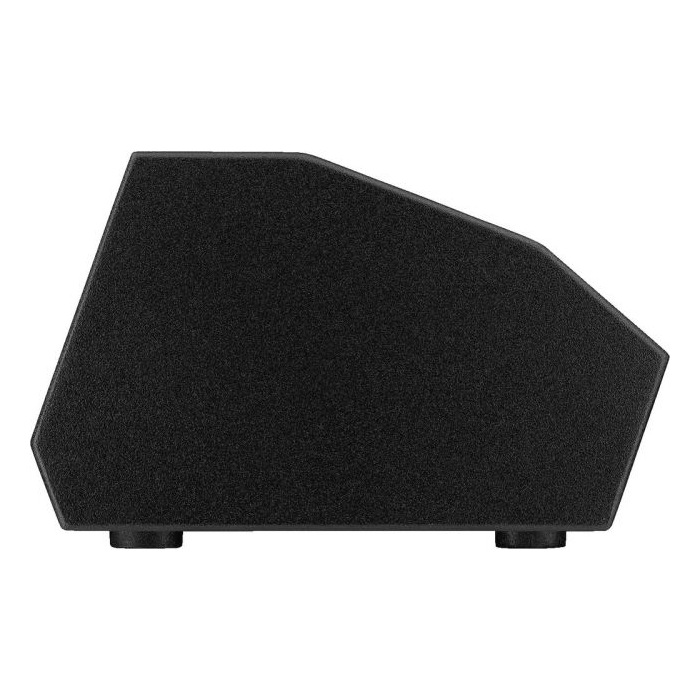

- High-quality plywood cabinet with protective metal grille
- M10 threaded insert for stand adapter or mounting device
Active/passive: active
Transmission technology: cable
Total output power: 300 W
Power rating (RMS): 100 W
Frequency range: 70-21,000 Hz
Input signal: 180 mV/5,6 kΩ (line, bal.), 180 mV/5,6 kΩ (aux, RCA) 1.5 mV/1.2 kΩ (mic, bal.), 70 mV/4 kΩ (aux, 6.3 mm jack, asym.)
System: 1 x 2-way coaxial speaker
Bass speaker: 1 x 20 cm (8")
Tweeter: 1 x coaxial horn tweeter
Number of speakers: 2
Speaker size: 20 cm (8")
SPL: 99 dB/W/m
Max. rated SPL: 121 dB
Radiation angle, horizontal: 70°
Radiation angle, vertical: 50°
Housing material: MDF
Colour: black
Mounting device: 1 x M10 threaded insert
Admiss. ambient temp.: 0-40 °C
Power supply: ˜ 230 V/50 Hz/100 VA
Dimensions: 375 x 185 x 330 mm
Width: 375 mm
Height: 185 mm
Depth: 330 mm
Weight: 7.48 kg

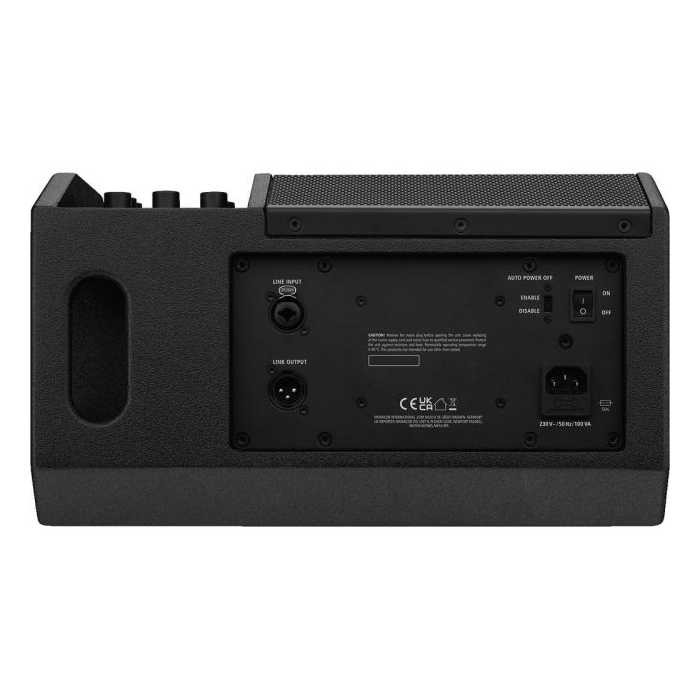

Inputs: 1 x comb. XLR/6.3 mm (mic), 1 x comb. XLR/6.3 mm (line), 1 x RCA L/R, 1 x 6.3 mm stereo jack
Outputs: 1 x XLR direct out
Other features: limiter
Accessories: FLAT-M8BAG
Packing dimensions (W x H x L): 0.43 x 0.29 x 0.47 m
Gross weight: 8.82 kg
Net weight: 7.48 kg
