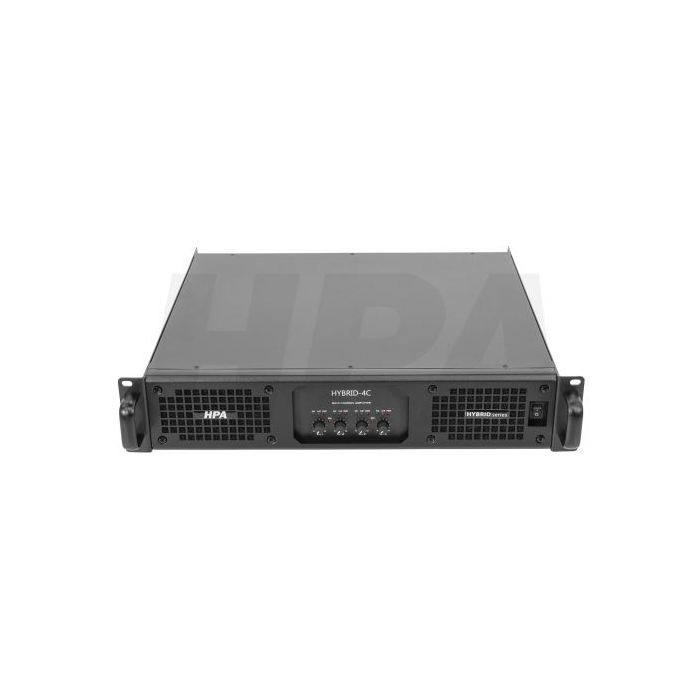

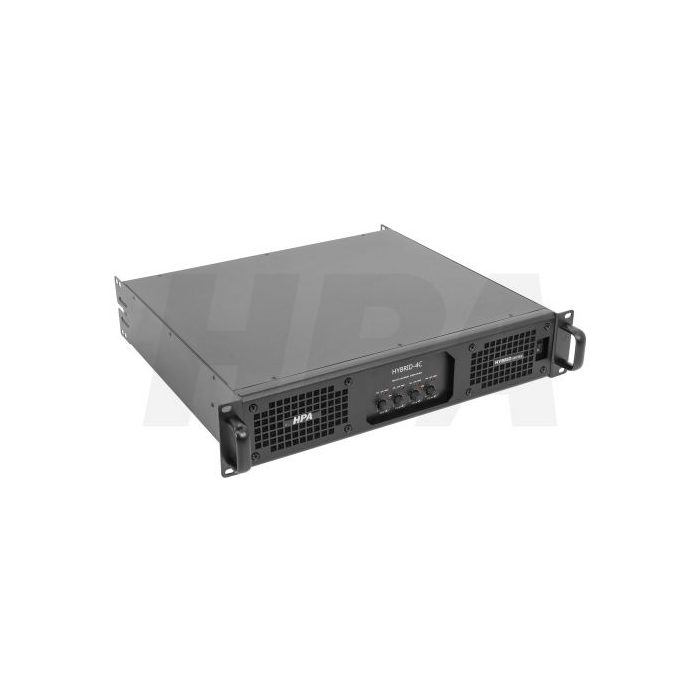

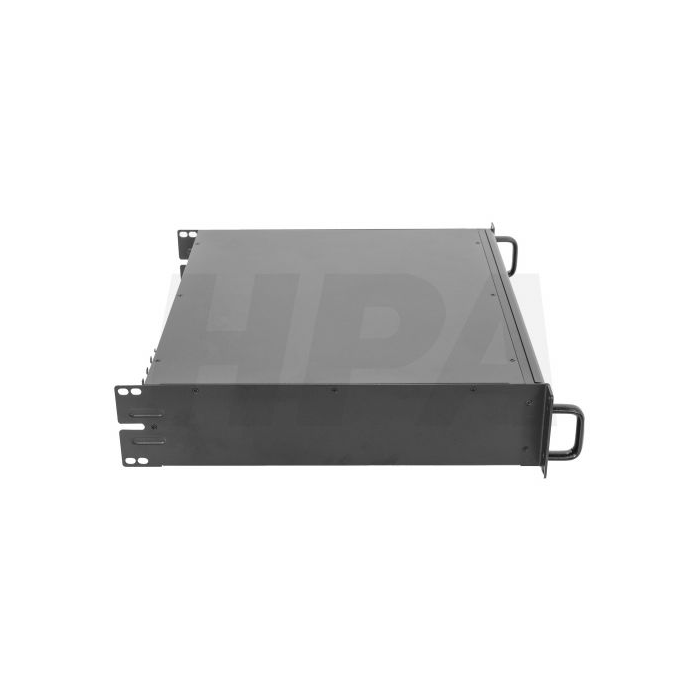

4-channel hybrid Class D power amplifier, HPA Hybrid-4C.
- HPA Hybrid#4C
- 4#channel hybrid Class D power amplifier
- Pascal Audio L#PRO2S amplification module
- Stereo, parallel and bridge mode switch
- Electronic, thermal and electrical protections
- Fan cooling
- Soft start
Power into 8 ohms: 4x 400 W RMS
Power into 4 ohms: 4x 800 W RMS
Power into 2.7 ohms: 4x 1,200 W RMS
Power into 100 V: 4x 200 W RMS
Bridge power 8 ohms / 100 V: 2x 1,500 W RMS
Bridge power 4 ohms: 2x 2,500 W RMS
Damping factor: >350
Input sensitivity: 1 V
Input impedance: 20 kohms symmetrical
Input impedance: 10 kohms unbalanced
Ratio signal/noise ratio: 119 dB
THD: 0.05% at 1 kHz
Frequency response: 20 Hz # 20 kHz +/# 0.5 dB
Inputs: XLR
Outputs: speakON + Euroblock
Power supply: 100#240 VAC / 50#60 Hz
Dimensions: 482 x 88 x 408 mm
Net weight: 7 kg
