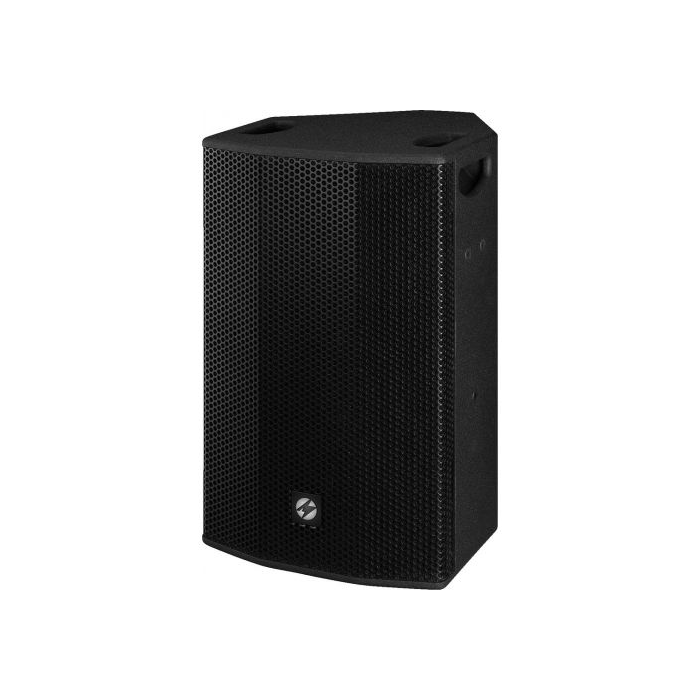

Professional PA speaker system, 350 W, 8 Ω
- Compact professional full range bass-reflex system
- Cabinet made of birch plywood
- 25 cm (10", FaitalPro 10PR300) bass speaker
- 25 mm (1", 44 mm voice coil, Celestion CDX1-1747) horn tweeter, can be turned by 90°
- Switchable between passive operation and bi-amp active operation
- Neutral sound tuning
- Catch & Carry carrying handle
- M8 threaded inserts for suspended installation
- 2 x NEUTRIK SPEAKON terminal, in/out
- Stand sleeve, robust front grille
- Ball-proof acc. to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Active/passive: passive
Transmission technology: cable
Total power rating: 700 W
Power rating (RMS): 350 W
Impedance: 8 Ω
Frequency range: 55-20,000 Hz
System: 2-way bass-reflex
Bass speaker: 25 cm (10", FaitalPro 10PR300)
Tweeter: dyn. 25 mm mid-high range speaker (1", 44 mm voice coil, Celestion CDX1-1747 )
Number of speakers: 2
Speaker size: 25 cm (10")
SPL: 96 dB/W/m
Max. rated SPL: 121 dB
Radiation angle/beam angle: H: 80°/V: 40°, horn can be turned by 90°
Radiation angle, horizontal: 80°
Radiation angle, vertical: 40°
Housing material: birch plywood
Colour: black
Mounting device: M8 threaded inserts, stand sleeve
Protected against ball rebound: yes
Admiss. ambient temp.: 0-40 °C
Dimensions: 320 x 545 x 350 mm
Width: 320 mm
Height: 545 mm
Depth: 350 mm
Weight: 13.9 kg
Inputs: 1 x NEUTRIK SPEAKON
Outputs: 1 x NEUTRIK SPEAKON par. out
Accessories: MOVE-10/BAG
Packaging dimensions (W x H x L): 0.32 x 0.545 x 0.35 m
Gross weight: 14.48 kg
Net weight: 13.9 kg
