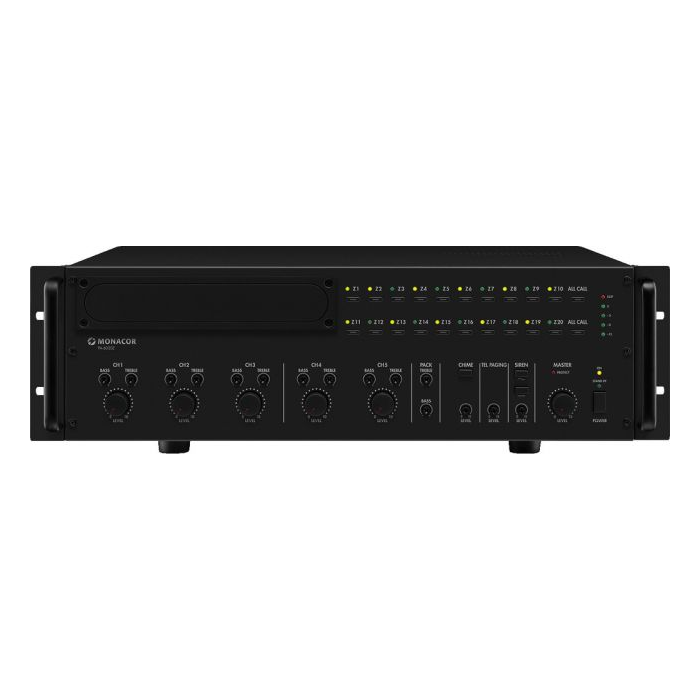

20-zone mono PA mixing amplifier
- 1 x 600 W
- 20 zones, can be controlled individually
- 3 inputs microphone/line via comb. jacks
- 2 inputs stereo line via RCA jacks
- Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
- Insertions for various functions are available at option
- 15 V phantom power for electret microphones
- Connection for up to 32 zone paging microphones PA-2400RC
- Connection for up to 3 push-to-talk microphones PA-4300PTT
- Alarm announcement with insertion PA-1120DMT (available at option)
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
Power rating: 600 W
Power rating at 100 V: 600 W
Channels: 5
Zones: 20
Inputs: 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3), 0.3 V/15 kΩ (line 4-5), 0.775 V/100 kΩ (preamplifier)
Frequency range: 55-16,000 Hz
Equalizer bass: ±10 dB/100 Hz
Equalizer treble: ±10 dB/10 kHz
S/N ratio: > 70 dB (mic), > 80 dB (line)
THD: < 1%
Phantom power: 15 V
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 1,700 VA
Operating voltage (possible alternative): DC 24 V
Power supply (possible alternative): DC 50 A
Admiss. ambient temp.: 0-40 °C
Width: 482 mm
Height: 133 mm
Depth: 352 mm
Rack units, RU: 3
Weight: 21 kg

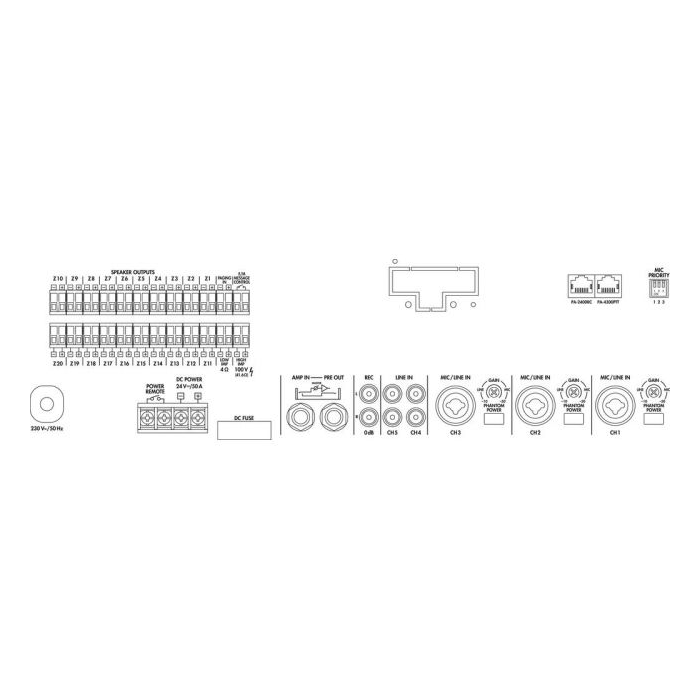

Connections: 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplfier input), 1 x RJ45 (push-to-talk mic), 1 x RJ45 (zone paging mic), 1 x RCA L/R (record output), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers)
Packing dimensions (W x H x L): 0.54 x 0.21 x 0.47 m
Gross weight: 22.9 kg
Net weight: 21 kg
