Mixážny zosilňovač 35W
- 2 mikrofónové vstupy, 1 aux vstup, 1 phono vstup
- Nastavenie úrovne vstupov a výstupu
- 2-pásmové, sumárne korekcie
- Napájanie 230V AC alebo 12V/24 DC
- Výstupy 4Ω, 8Ω, 70V a 100V cez skrutkovacie svorky
- Kontakt priority pre utlmenie vstupov 2, phono a aux počas hlásenia (vstup 1)
- Tichá prevádzka vďaka konceptu chladenia bez ventilátora
Peak output power: 70 W
Power rating: 35 W
Channels: 4
Inputs: 5 mV (mic), 210 mV (aux), 5 mV (phono)
Frequency range: 100-18,000 Hz
Equalizer bass: ±10 dB/150 Hz
Equalizer treble: ±10 dB/6 kHz
S/N ratio: > 55 dB
THD: < 1%
Power supply: ˜ 230 V/50 Hz/100 VA DC 12-24 V/2.5 A
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 100 VA
Operating voltage (possible alternative): DC 12-24 V
Power supply (possible alternative): DC 2.5 A
Admiss. ambient temp.: 0-40 °C
Width: 320 mm
Height: 85 mm
Depth: 230 mm
Weight: 4.97 kg

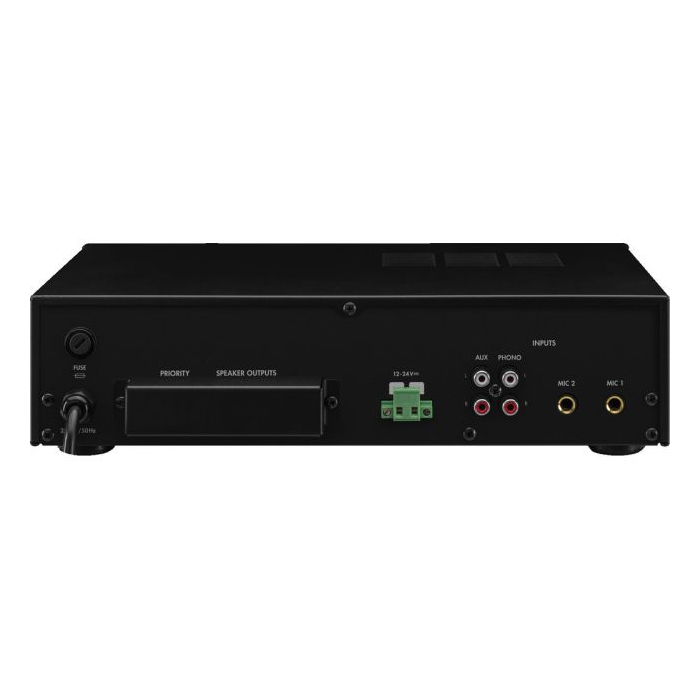

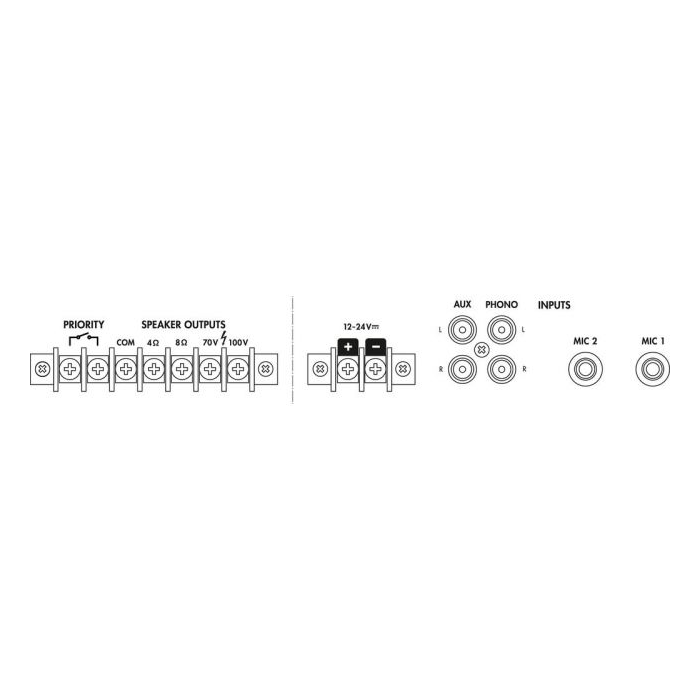

Connections: 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), screw contacts (speakers)
Packing dimensions (W x H x L): 0.37 x 0.14 x 0.28 m
Gross weight: 5.33 kg
Net weight: 4.97 kg
