Viacúčelové PA reproduktory pre všestranné použitie:

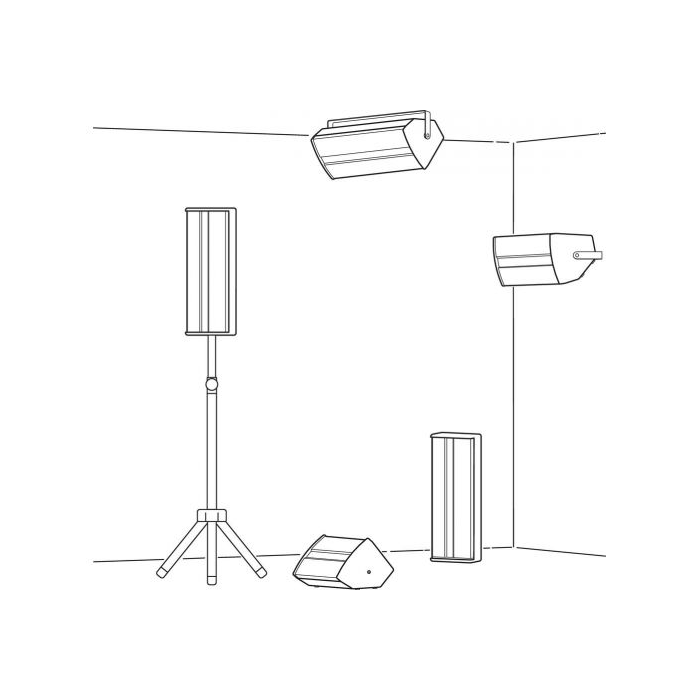

série 300. Môžu byť použité pre pevné inštalácie aj pre mobilné aplikácie. Ideálne sa hodí pre výkonné PA aplikácie s dobrou úrovňou stability v miestnostiach, ako aj pre aplikácie so zadným a bočným vyplnením. Veľmi kompaktné a ľahko prenosné systémy sú veľmi vhodné aj pre mobilné aplikácie v kombinácii s vhodnými subwoofermi, napr. PSUB-12AKA alebo PSUB-15AKA a ako malé podlahové monitory.

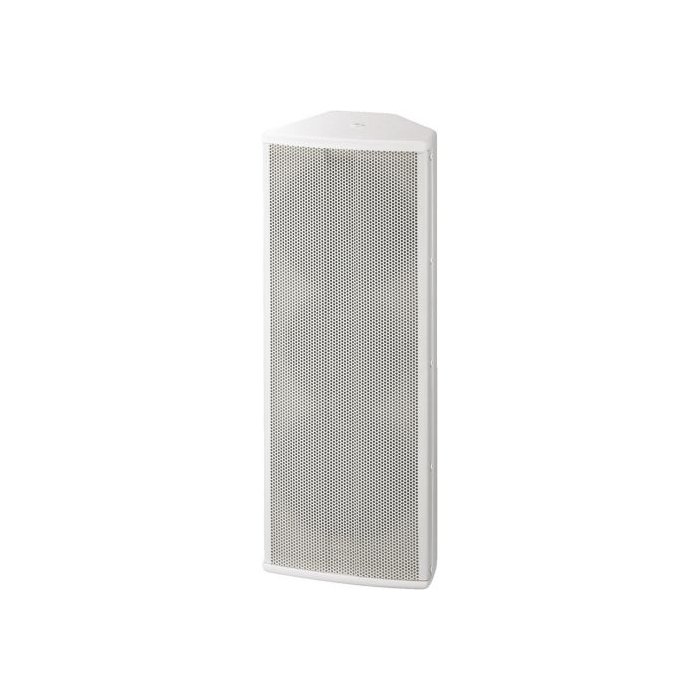

Univerzálne PA reproduktorové systémy, 160 W, 8 Ω
- Uzavretý 2-pásmový systém
- 2 x 16 cm (6.5") basový reproduktor, 25 mm (1") horn tweeter
- Ochranný obvod tweetera

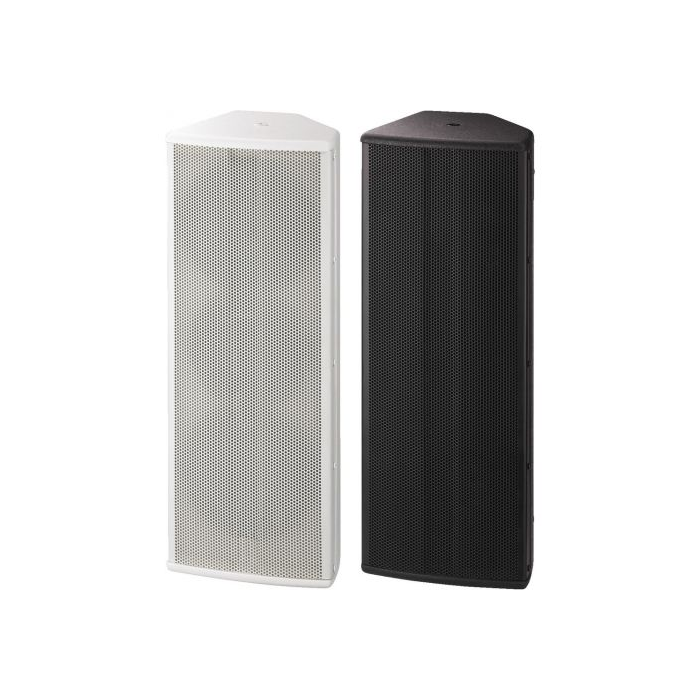

- Kvalitné MDF drevené skrinky v čiernej (SW) alebo bielej farbe (WS), s ochrannou kovovou mriežkou
- 4 x M8 závitové vložky pre závesnú inštaláciu

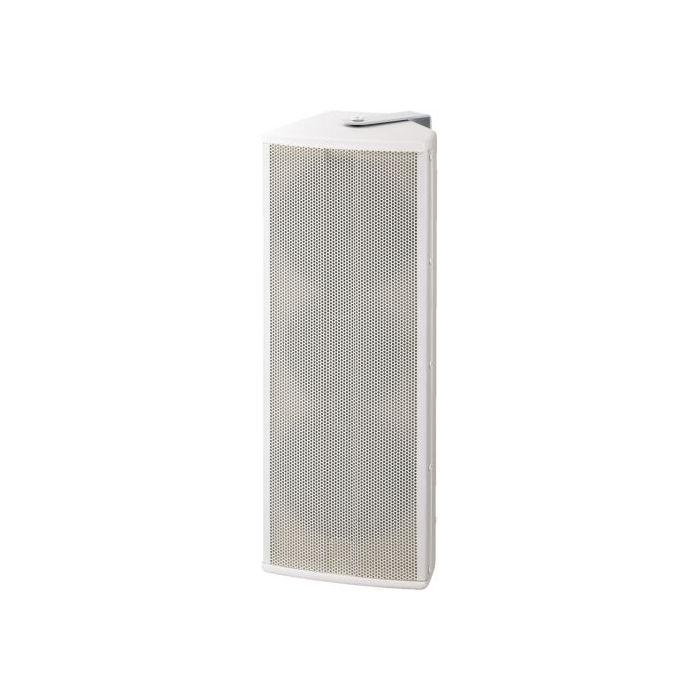

- Dodávané s montážnou konzolou a integrovanou stojanovou manžetou
- NEUTRIK SPEAKON terminál
EVENT Rookie 08/2012
“Any speaker with a great appearance should ideally provide a great sound. This is exactly what the PAB-306/SW and PAB-308/SW do - throughout low volume levels and high volume levels. Even though, these speaker systems are not intended for excessive volume levels, they deliver a surprisingly powerful sound. Based on subjective assessment, the PAB-306 with the two 6.5" speakers supplies a fuller, more prominent sound. However, with a slightly lower frequency range, the PAB-308 provides a little bit more bass. Each user should decide whether this will be required for the intended range of application, or not. The slim and unobtrusive appearance is also an advantage of the PAB-306. With its particularly slimline design, this speaker system is particularly suitable for the use as a small monitor speaker. It can be fully recommended for small monitoring, unobtrusive room and background music or as a fill for larger systems. Both models are available in rock
roll black and gala white.”
Active/passive: passive
Total power rating: 320 W
Power rating (RMS): 160 W
Impedance: 8 Ω
Frequency range: 65-20,000 Hz
System: 2-way DAppolito, closed
Bass speaker: 2 x 16 cm (6.5")
Tweeter: 25 mm (1") horn tweeter
Number of speakers: 3
Speaker size: 16 cm (6.5")
SPL: 93 dB/W/m
Max. rated SPL: 116 dB
Radiation angle/beam angle: H: 100°/V: 100°
Radiation angle, horizontal: 100°
Radiation angle, vertical: 100°
Housing material: MDF wood
Colour: white
Mounting device: M8 threaded inserts, mounting bracket
Admiss. ambient temp.: 0-40 °C
Dimensions: 212 x 565 x 190 mm
Width: 212 mm
Height: 565 mm
Depth: 190 mm
Weight: 9.5 kg
Inputs: 1 x NEUTRIK SPEAKON
Outputs: 1 x NEUTRIK SPEAKON, par. out
Packing dimensions (W x H x L): 0.3 x 0.7 x 0.3 m
Gross weight: 13.01 kg
Net weight: 10.96 kg
