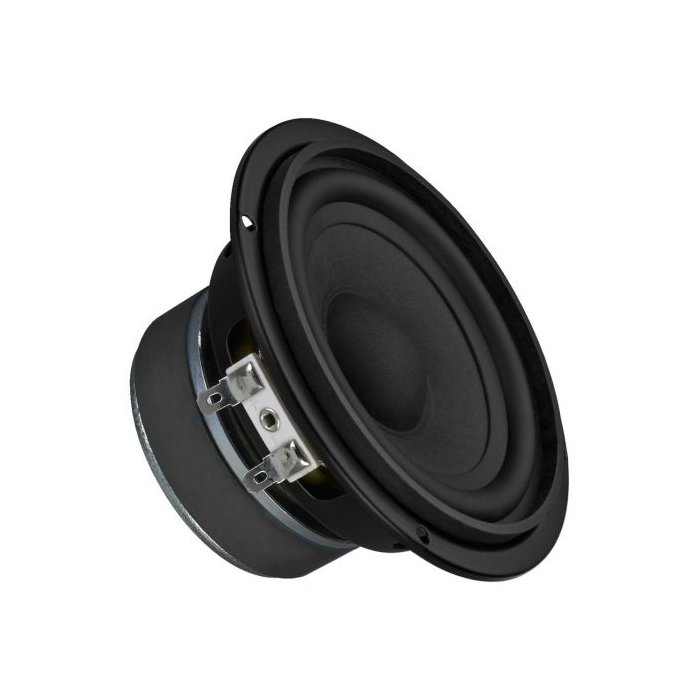

Hi-fi stredobasový reproduktor, 40 W, 8 Ω
- Vynikajúci náhradný reproduktor rovnakej kvality ako od originálneho výrobcu zariadenia
- Papierový kužeľ s nízkou rezonanciou
- Gumený rám s dlhou životnosťou
- Long-term stable rubber surround
- Also very well-suited for use as a full range speaker
Impedance (Z): 8 Ω

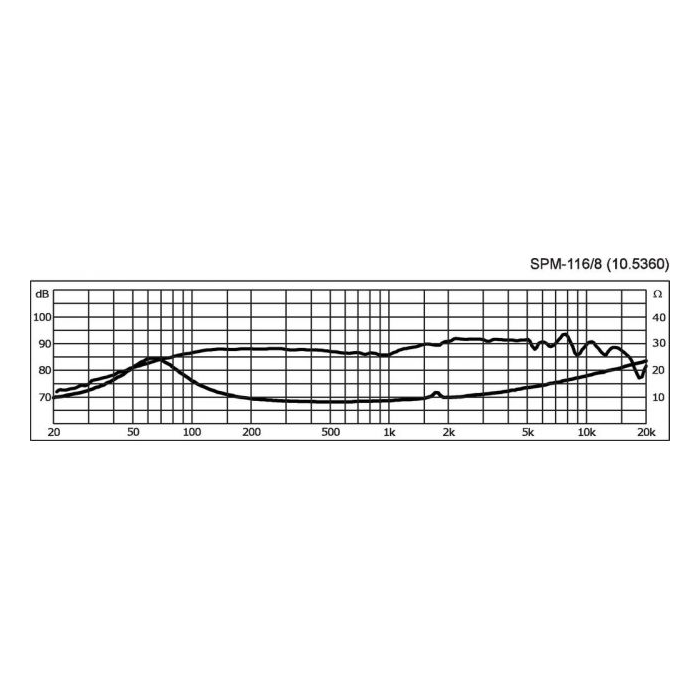

Frequency range: f3-18,000 Hz
Resonant frequency (fs): 75 Hz
Power rating (RMS): 40 W
Peak music power output (MAX): 80 W
SPL: 87 dB/W/m
Suspension compl. (Cms): 0.98 mm/N
Moving mass (Mms): 3.8 g
Mech. Q factor (Qms): 1.9
Electr. Q factor (Qes): 0.81
Total Q factor (Qts): 0.57
Equivalent volume (Vas): 4.5 l
DC resistance (Re): 7.2 Ω
Force factor (BxL): 4.20 Tm
Voice coil induct. (Le): 0.4 mH
Voice coil diameter: Ø 20.5 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 1.5 mm
Eff. cone area (Sd): 57 cm2
Magnet weight: 230 g
Magnet diameter: Ø 70 mm

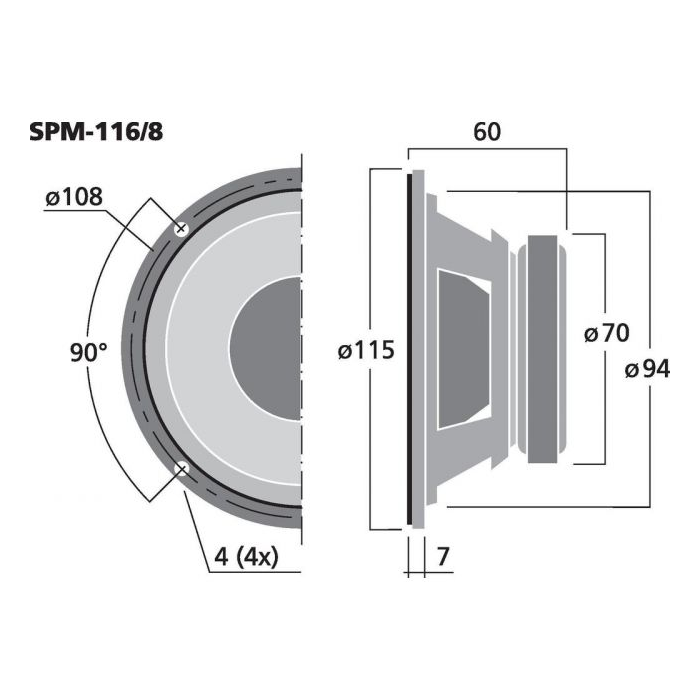

Mounting cutout: Ø 94 mm
Mounting depth: 53 mm
Mounting hole diameter: Ø 108 mm
Dimensions: Ø 115 mm x 60 mm
Outside diameter: Ø 115 mm
Width: Ø 115 mm
Depth: 60 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 0.557 kg
Packing unit: 1
Type of speaker: 4"
Packing dimensions (W x H x L): 0.12 x 0.07 x 0.12 m
Gross weight: 0.59 kg
Net weight: 0.557 kg
