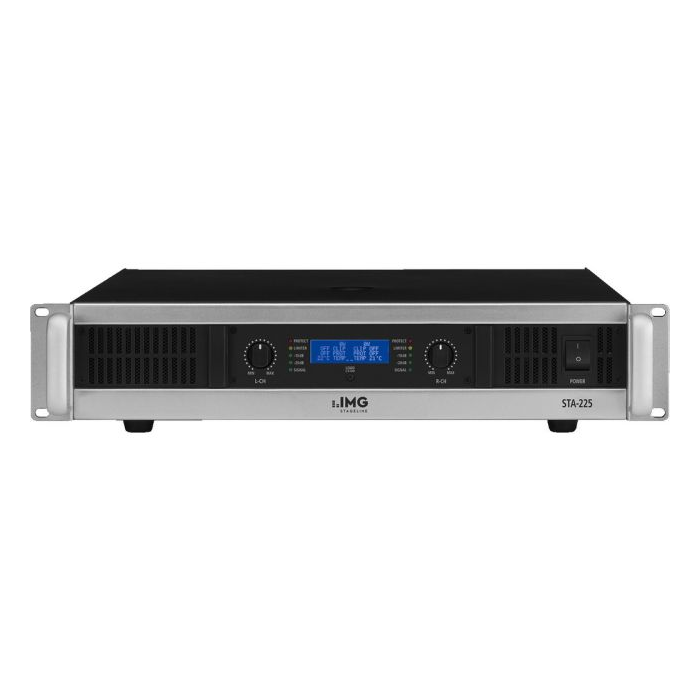

Stereo PA zosilňovače,
s integrovaným limitérom.
- LCD displej pre zobrazenie teploty, operačného režimu a funkčnosti
- 2 operačné módy (stereo alebo v premostení)
- Možnosť zapnutia funkcie Limiter
- Teplotne ovládané ventilátory
- 2 ovládače úrovne
- Funkcia Ground lift (uzemnenie)
- Oneskorené zapínanie reproduktorov (delay)
- Ochranný obvod s indikáciou LED - ochrana proti skratu a prehriatiu
- LED kontrolky pre indikáciu prepätia, úrovne a signálu pre každý kanál
tastenwelt 02/2012
"The plastic housings are of neat workmanship ... the MMX-842USB is a good choice ... the STA-225 features all standard protective circuits, even a clip limiter can be switched on additionally. A display shows useful information on the operation. The system tested provided a really appealing sound: a nice deep bass reproduction and a clear midrange of the 12" speakers and a full and clear reproduction of the high frequencies, too. With the support of a subwoofer, the volume which can be achieved is already sufficient to show a great performance at smaller to medium-sized events. Neither the active Basový reproduktor nor the passive top parts provide an unpleasant or even overstrained sound."
(PA setup of PAB-112MK2, PSUB-115AK, STA-225, MMX-842USB)
Peak output power: 1,000 W
Power rating: 700 W
Power rating at 4 Ω: 2 x 350 W
Power rating at 8 Ω: 2 x 250 W
Power rating with 8 Ω bridged operation: 1 x 700 W
Channels: 2
Inputs: 1.3 V/10 kΩ
Frequency range: 10-50,000 Hz
Integrated limiter: no
S/N ratio: > 80 dB
Crosstalk attenuation: > 50 dB
THD: < 0.1%
Power supply: ˜ 230 V/50 Hz/1,500 VA
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 1,500 VA
Admiss. ambient temp.: 0-40 °C
Width: 482 mm
Height: 100 mm
Depth: 330 mm
Rack units, RU: 2
Weight: 10.3 kg

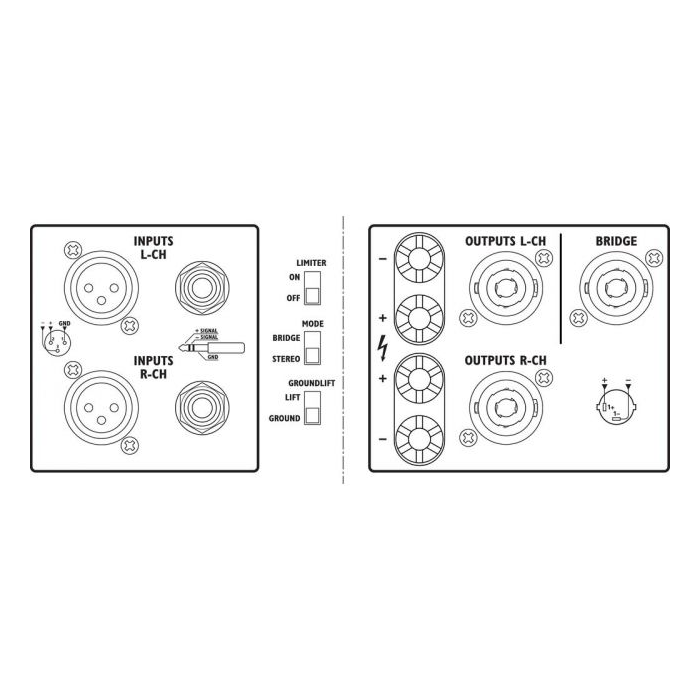

Connections: 1 x 3-pole XLR L/R, bal.1 x 6.3 mm jack L/R, bal.3 x SPEAKER2 x pair of screw terminals
Packaging dimensions (W x H x L): 0.37 x 0.14 x 0.51 m
Gross weight: 11.38 kg
Net weight: 10.46 kg
