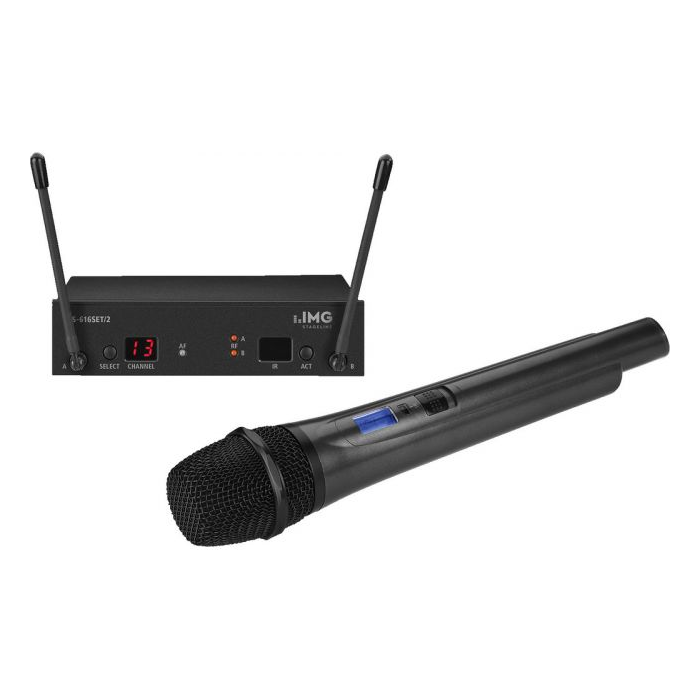

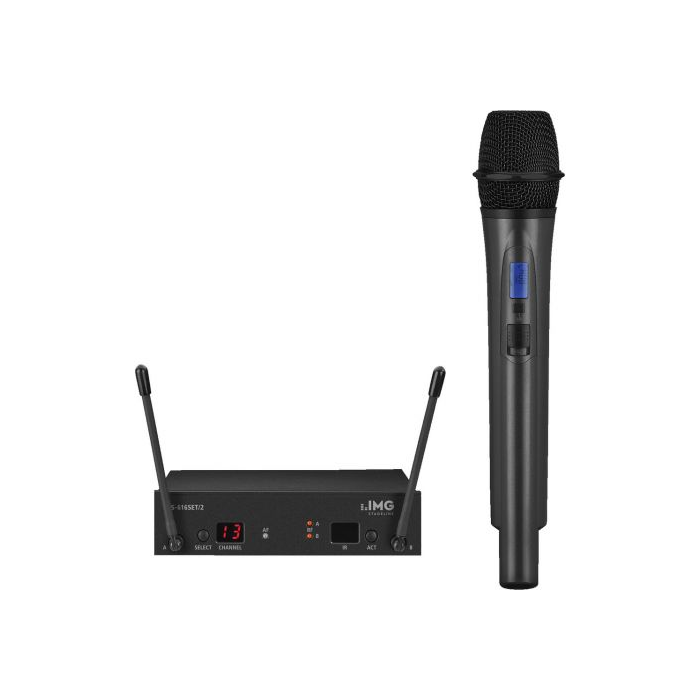

Multifrequency microphone system,
with UHF PLL technology.
- 1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply
- True diversity system
- 80 selectable UHF channels (672.000-691.750 MHz)
- ACT function for transmitting selected frequency to the hand-held microphone via infrared signal
- Auto-scan
- Volume and squelch controls
- Transmitting power can be switched at the hand-held microphone (high/low)
- Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
- Robust metal housing (receiver)
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Description: wireless microphone system
Carrier frequency range: 672-692 MHz
Audio frequency range: 50-18,000 Hz
Channels: 1
THD: < 0.5%
Dynamic range: 120 dB
RF S/N ratio: 105 dB
Admiss. ambient temp.: 0-40 °C
Transmitting power: < 25 mW/2.5 mW (EIRP)
Operating range: ≈ 50 m
Power supply transmitter: 2 x 1.5 V batt. AA size
Width transmitter: 52 mm
Height transmitter: 52 mm
Depth transmitter: 275 mm
Weight transmitter: 235 g
Audio signal receiver: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
Power supply receiver: via encl. plug-in power supply
Width receiver: 152 mm
Height receiver: 38 mm
Depth receiver: 120 mm
Weight receiver: 482 g
Connections receiver: 1 x 6.3 mm jack, unbal. 1 x XLR, bal.
