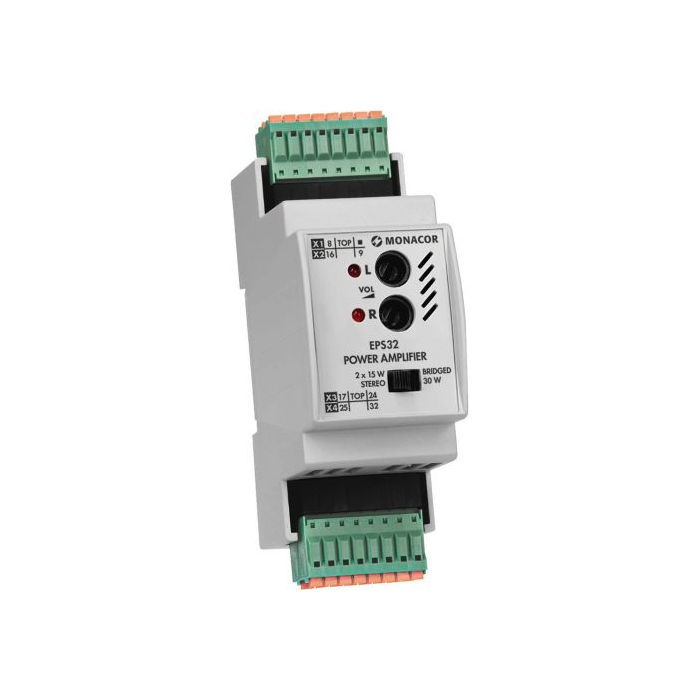

Amplifier, 2 x 15 W
- For mounting onto DIN rails according to DIN EN 60529, 2 HP
- 2-channel class D amplifier
- Selectable mode stereo/bridged
- Inputs to be switched externally
- Balanced and unbalanced input
- Summing amplifier input
- Microphone input
- Separate volume control for each channel
- High-efficiency green design
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range -20 °C to +40 °C).
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.
Peak output power: 30 W
Power rating: 24 W
Power rating at 4 Ω: 2 x 12 W
Power rating at 8 Ω: 2 x 6 W
Power rating with 4 Ω bridged operation: 1 x 24 W
Power rating with 8 Ω bridged operation: 1 x 12 W
Output impedance: 4-8 Ω
Channels: 2
Inputs: 1 V/47 kΩ (bal.), 22 kΩ (unbal.)
Frequency range: 42-21,000 Hz
S/N ratio: 92 dB
THD: 0.05%
Phantom power: 9-12 V
Operating voltage (possible alternative): DC 12-26 V, rec. DC 24 V
Admiss. ambient temp.: -20 °C to +40 °C
Width: 36 mm
Height: 101 mm
Depth: 62 mm
Weight: 98 g
Connections: spring-loaded terminals
Packaging dimensions (W x H x L): 0.037 x 0.095 x 0.075 m
Gross weight: 0.1297 kg
Net weight: 0.098 kg
