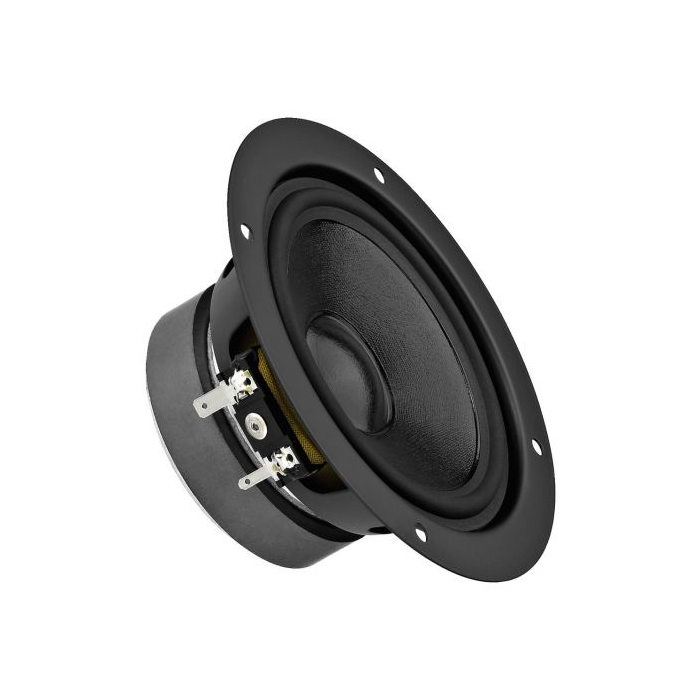

Hi-fi stredový reproduktor, 40 W, 4 Ω
- Špičková technológia
- Potiahnutý špeciálny kužeľ
- Protiprachová krytka s vysokým tlmením
- Extra plochý kôš (bez potreby zabudovania)
- Najlepšia možná linearita
- Perfektný hmotnostný pomer so širokou šírkou pásma
- Pre zvuk extra triedy
HOBBY HiFi 03/2015
“The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency - a really great midrange speaker.”
Impedance (Z): 4 Ω
Transmission technology: cable

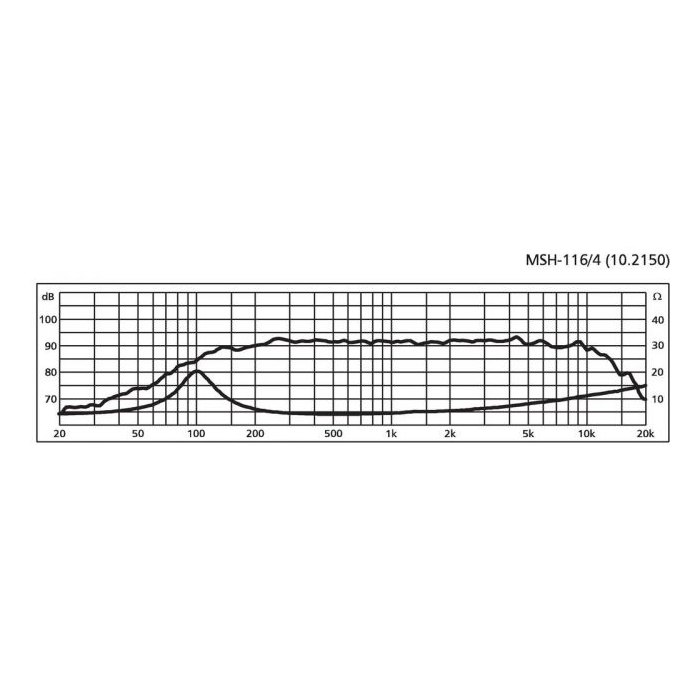

Frequency range: fx-10,000 Hz
Resonant frequency (fs): 95 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 300/5,000 Hz
Power rating (RMS): 40 W
Peak music power output (MAX): 120 W
SPL: 91 dB/W/m
Suspension compl. (Cms): 0.62 mm/N
Moving mass (Mms): 4.6 g
Mech. Q factor (Qms): 2.38
Electr. Q factor (Qes): 0.48
Total Q factor (Qts): 0.40
Equivalent volume (Vas): 2.7 l
DC resistance (Re): 3.2 Ω
Force factor (BxL): 4.30 Tm
Voice coil induct. (Le): 0.18 mH
Voice coil diameter: Ø 25 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 1 mm
Eff. cone area (Sd): 55 cm2
Magnet weight: 240 g
Magnet diameter: Ø 72 mm

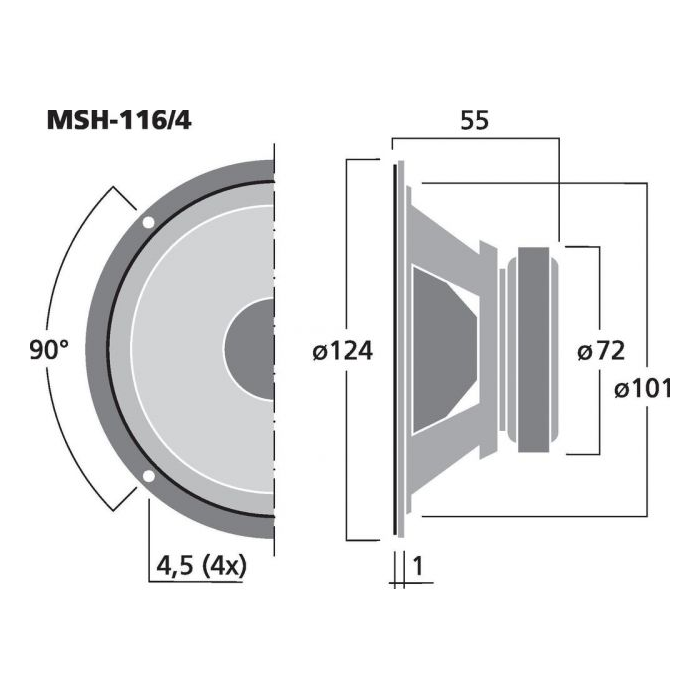

Mounting cutout: Ø 101 mm
Mounting depth: 54 mm
Mounting hole diameter: Ø 112 mm
Hole spacing X-axis: 79 mm
Hole spacing Y-axis: 79 mm
Dimensions: Ø 124 mm x 55 mm
Outside diameter: Ø 124 mm
Width: Ø 124 mm
Height: Ø 124 mm
Depth: 55 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 0.56 kg
Packing unit: 1
Type of speaker: 4"
Packaging dimensions (W x H x L): 0.13 x 0.09 x 0.13 m
Gross weight: 0.66 kg
Net weight: 0.56 kg
