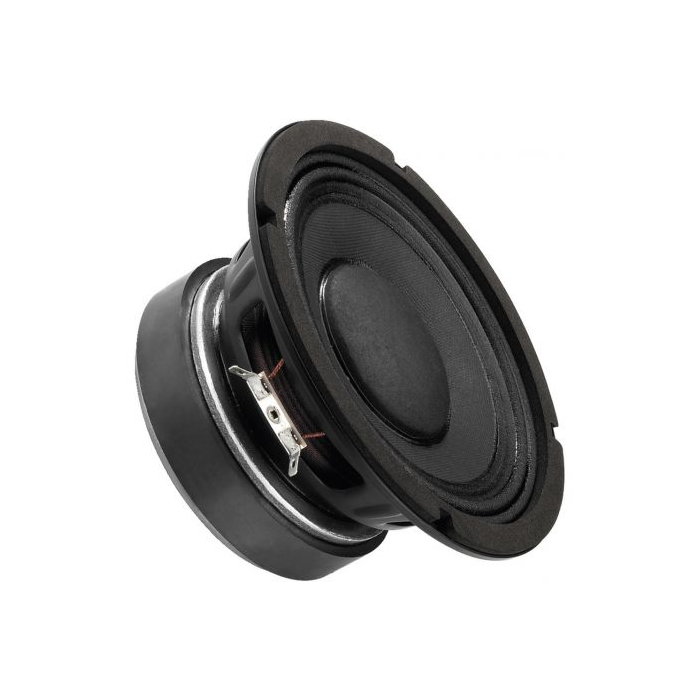

PA stredobasový reproduktor, 100 W, 8 Ω

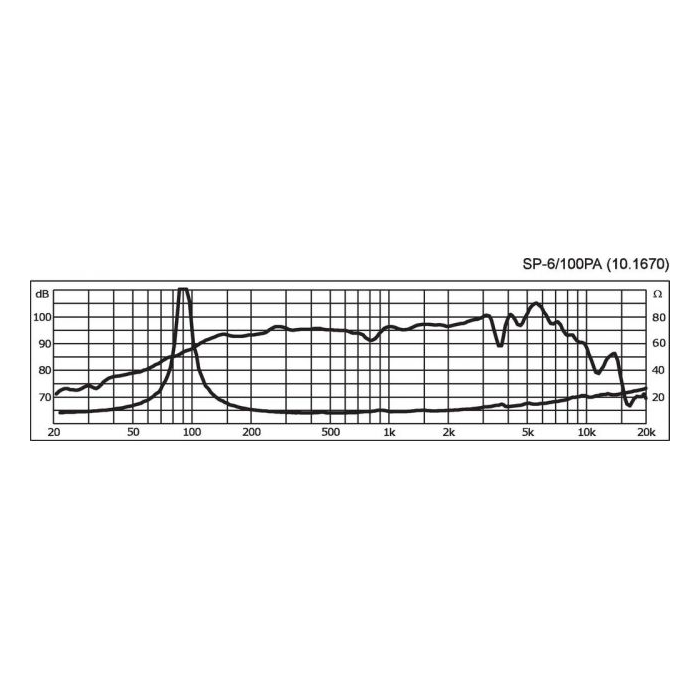

- Veľmi lineárna frekvenčná odozva
- Vysoká efektivita
- Perfektný reproduktor stredného rozsahu pre výkonné 3-smerové usporiadanie v poloprofesionálnej oblasti
Impedance (Z): 8 Ω
Frequency range: f3-8,000 Hz
Resonant frequency (fs): 90 Hz
Power rating (RMS): 100 W
Peak music power output (MAX): 200 W
SPL: 94 dB/W/m
Suspension compl. (Cms): 0.28 mm/N
Moving mass (Mms): 11.2 g
Mech. Q factor (Qms): 4.24
Electr. Q factor (Qes): 0.49
Total Q factor (Qts): 0.44
Equivalent volume (Vas): 8 l
DC resistance (Re): 6.7 Ω
Force factor (BxL): 9.30 Tm
Voice coil induct. (Le): 0.5 mH
Voice coil diameter: Ø 40 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 0.75 mm
Eff. cone area (Sd): 139 cm2
Magnet weight: 850 g
Magnet diameter: Ø 120 mm

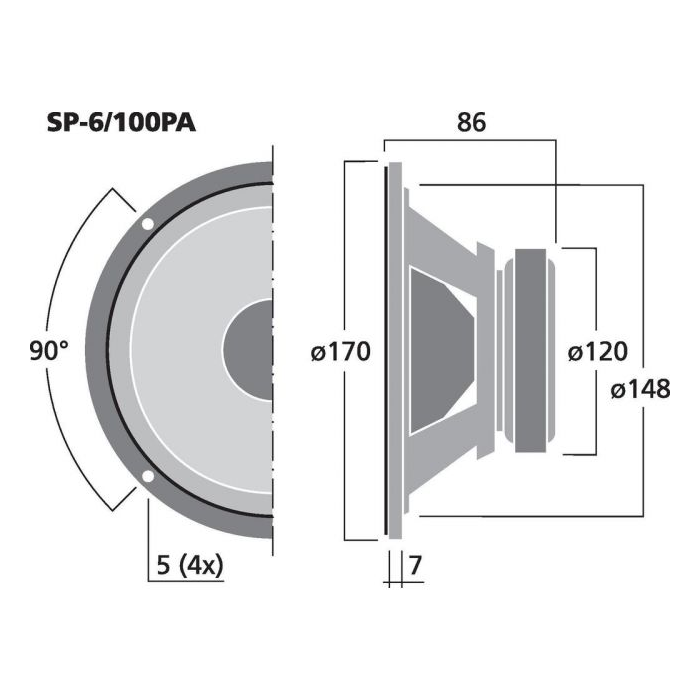

Mounting cutout: Ø 148 mm
Mounting depth: 79 mm
Dimensions: Ø 170 mm x 86 mm
Outside diameter: Ø 170 mm
Width: Ø 170 mm
Depth: 86 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.14 kg
Packing unit: 1
Type of speaker: 6"
Packing dimensions (W x H x L): 0.2 x 0.12 x 0.2 m
Gross weight: 2.37 kg
Net weight: 2.14 kg
