Mono class D PA mixing amplifier,
with integrated MP3 player, FM/DAB+ tuner and Bluetooth.
- 1 x 60 W
- Class D concept with high efficiency to cut energy costs
- Silent operation due to fanless cooling concept
- Bluetooth version 4.2
- MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
- Reception of interference-free digital radio (DAB+)
- 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
- 2 unbalanced inputs, switchable mic/line
- 2 unbalanced line inputs
- 1 TEL input
- 1 Music-On-Hold output (MOH)
- Speaker outputs via screw contacts
- Mute function via screw contact
- 2 line outputs
- Input level control and output level control
- 2-way tone control for the output
- LEDs for indicating operation, clipping, protect and signal level
Power rating: 60 W
Channels: 1
Zones: 1
Inputs: 4.5 mV/600 Ω (channel 1), 4.5 mV/120 mV (channels 2-3), 60 mV (channels 4-5) 90 mV (tel.)
Frequency range: 60-15,000 Hz
Equalizer bass: yes
Equalizer treble: yes
S/N ratio: 72 dB (mic, channels 1-3) 85 dB (line, channels 2-5)
THD: < 0.5%
Phantom power: 48 V
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 160 VA
Operating voltage (possible alternative): DC 24 V
Power supply (possible alternative): 4.2 A
Admiss. ambient temp.: 0-40 °C
Width: 320 mm
Height: 95 mm
Depth: 245 mm
Weight: 4.1 kg

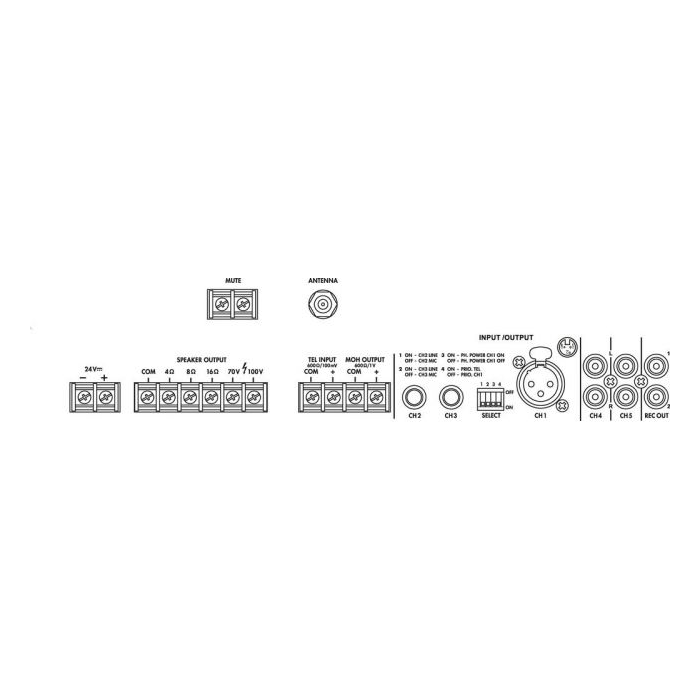

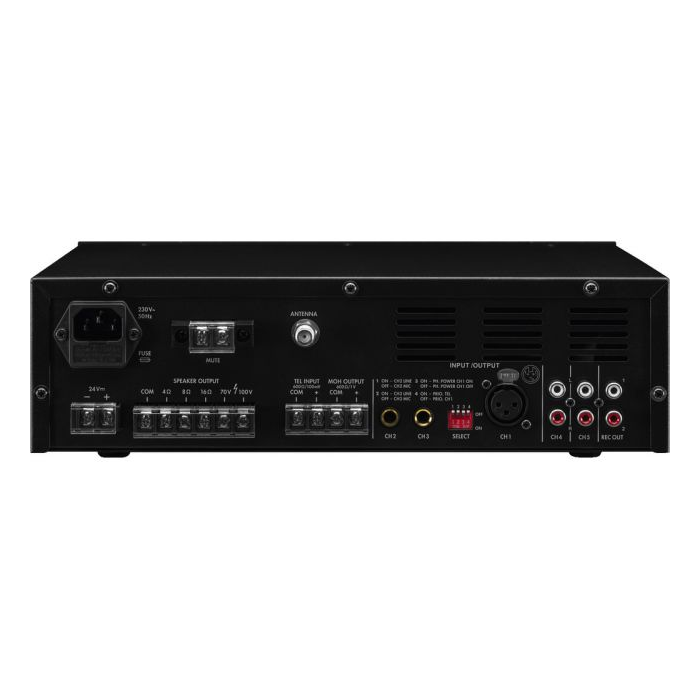

Connections: 1 x XLR (channel 1), 2 x 6.3 mm jack (channels 2-3), 2 x RCA L/R (channels 4-5), 2 x RCA (record out), 1 x F jack (FM/DAB+), screw contacts (tel. input), screw contacts (MOH), screw contacts ( DC 24 V), screw contacts (mute), screw contacts (speakers)
Packing dimensions (W x H x L): 0.39 x 0.16 x 0.31 m
Gross weight: 4.86 kg
Net weight: 4.09 kg
