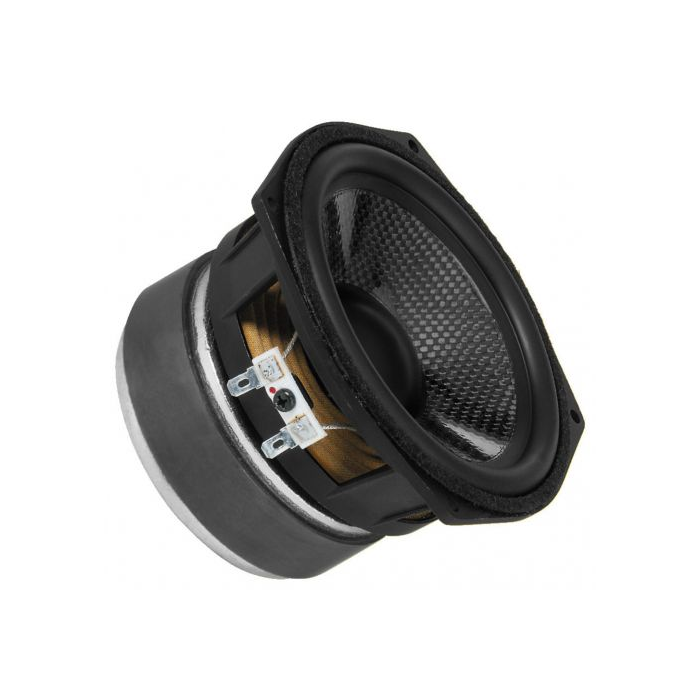

Hi-fi stredobasový reproduktor, 50 W, 8 Ω
- Osvedčený špičkový stredobasový reproduktor
- Parametre pre reprodukciu hlbokých basov
- Veľmi dlhá exkurzia
- Reproduktor pre tenké dvojpásmové reproduktorové systémy s neuveriteľne nízkymi základnými basmi a stabilitou na vysokej úrovni
Impedance (Z): 8 Ω

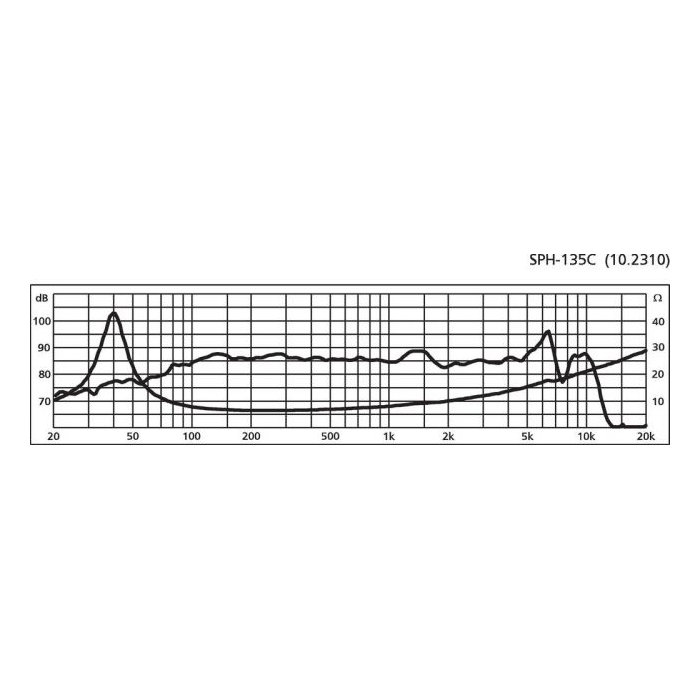

Frequency range: f3-8,000 Hz
Resonant frequency (fs): 40 Hz
Power rating (RMS): 50 W
Peak music power output (MAX): 80 W
SPL: 88 dB/W/m
Suspension compl. (Cms): 1.35 mm/N
Moving mass (Mms): 12 g
Mech. Q factor (Qms): 4.48
Electr. Q factor (Qes): 0.43
Total Q factor (Qts): 0.39
Equivalent volume (Vas): 17 l
DC resistance (Re): 6 Ω
Force factor (BxL): 6.50 Tm
Voice coil induct. (Le): 0.75 mH
Voice coil diameter: Ø 35.5 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 3.5 mm
Eff. cone area (Sd): 95 cm2
Magnet weight: 500 g
Magnet diameter: Ø 100 mm

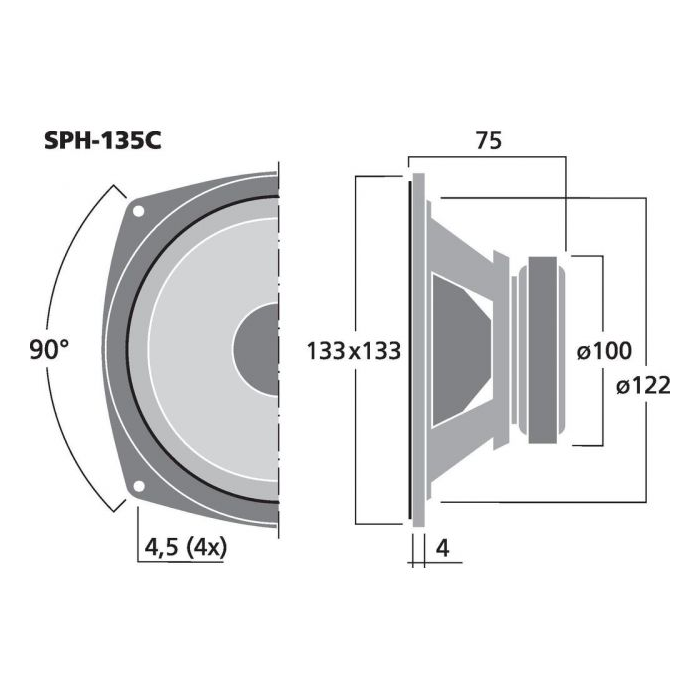

Mounting cutout: Ø 122 mm
Mounting depth: 71 mm
Dimensions: 133 x 133 x 75 mm
Width: 133 mm
Height: 133 mm
Depth: 75 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 1.43 kg
Packing unit: 1
Type of speaker: 5.25"
Packing dimensions (W x H x L): 0.14 x 0.09 x 0.14 m
Gross weight: 1.515 kg
Net weight: 1.43 kg
