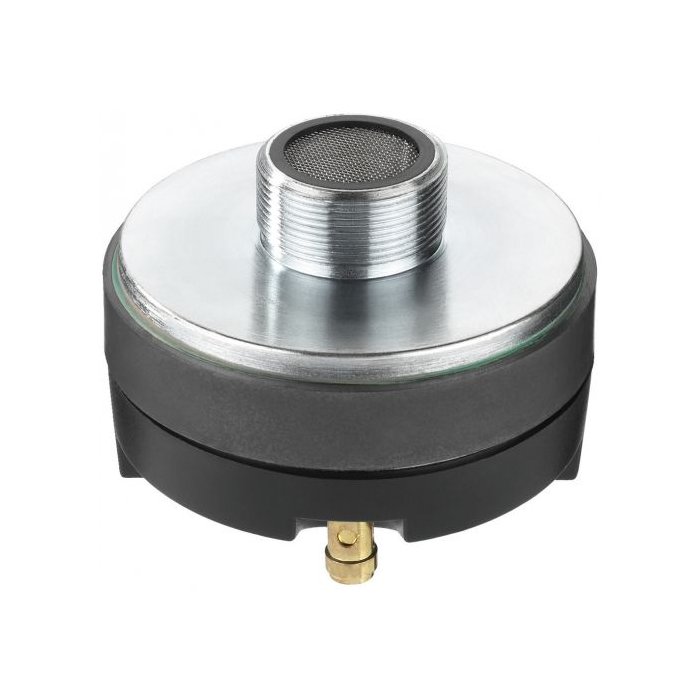

PA horn driver, 35 W, 8 Ω
- 35 mm (1 ⅜") štandardný závit
- Komponent reproduktorov PAB-108MK2, PAB-110MK2 a PAB-112MK2 ako aj reproduktorov PAK
- Vhodná náhradná hlasová cievka PAB-128/VC dostupná v ponuke
- Vhodná pre horny MRH-120, MRH-83, MRH-170 a MRH-80
Impedance (Z): 8 Ω
Frequency range: fx-20,000 Hz
Resonant frequency (fs): 1.2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 4,000 Hz
Power rating (RMS): 35 W
Peak music power output (MAX): 70 W
SPL: 104 dB/W/m
Radiation angle: dep. on horn
Voice coil diameter: Ø 34.5 mm
Magnet diameter: Ø 87 mm
Mounting cutout: dep. on horn
Mounting depth: dep. on horn

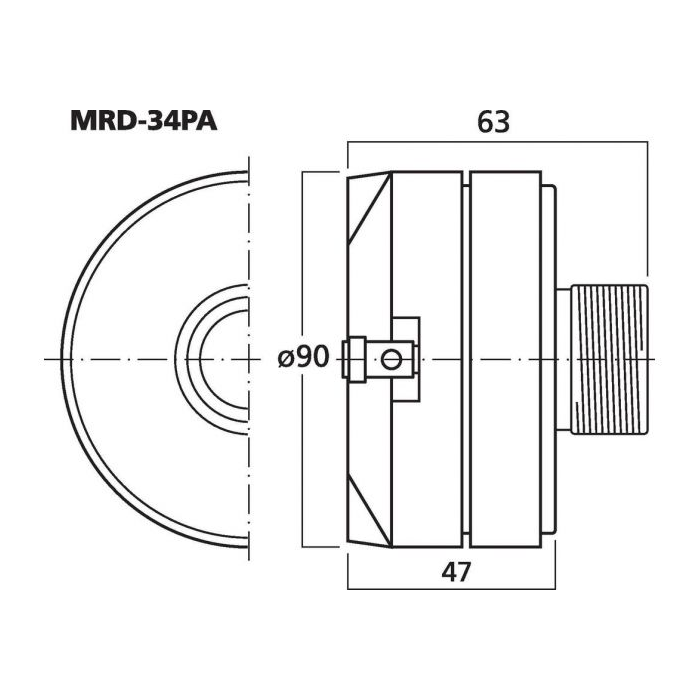

Dimensions: Ø 90 mm x 63 mm
Outside diameter: Ø 90 mm
Width: Ø 90 mm
Depth: 63 mm
Colour: silver/black
Admiss. ambient temp.: 0-40 °C
Weight: 0.945 kg
Packing unit: 1
Type of speaker: 1"
Packing dimensions (W x H x L): 0.09 x 0.07 x 0.09 m
Gross weight: 0.976 kg
Net weight: 0.945 kg
