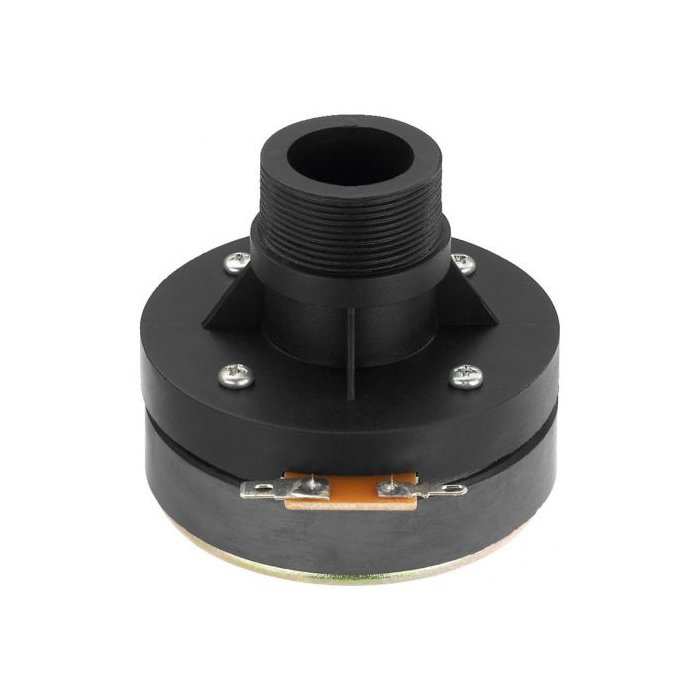

PA Výškový reproduktor, 30 W, 8 Ω
- PA výškový driver s 35 mm (1⅜") štandardným závitom
- Veľmi kompaktná veľkosť
- Vysoká efektivita
- Vhodný pre horny MRH-83, MRH-170 a MRH-80
Impedance (Z): 8 Ω
Transmission technology: cable
Frequency range: fx-17,500 Hz
Resonant frequency (fs): 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 5,000 Hz
Power rating (RMS): 30 W
Peak music power output (MAX): 60 W
SPL: 107 dB/W/m
Voice coil diameter: Ø 25.5 mm
Magnet diameter: Ø 80 mm
Mounting cutout: dep. on horn
Mounting depth: dep. on horn

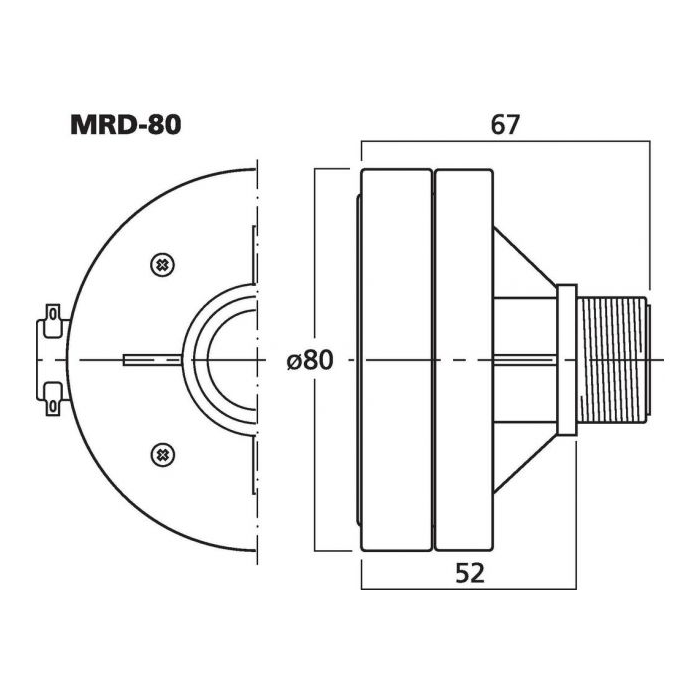

Dimensions: Ø 80 mm x 67 mm
Outside diameter: Ø 80 mm
Width: Ø 80 mm
Height: Ø 80 mm
Depth: 67 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 0.71 kg
Packing unit: 1
Type of speaker: 1"
Packaging dimensions (W x H x L): 0.085 x 0.075 x 0.095 m
Gross weight: 0.75 kg
Net weight: 0.715 kg
