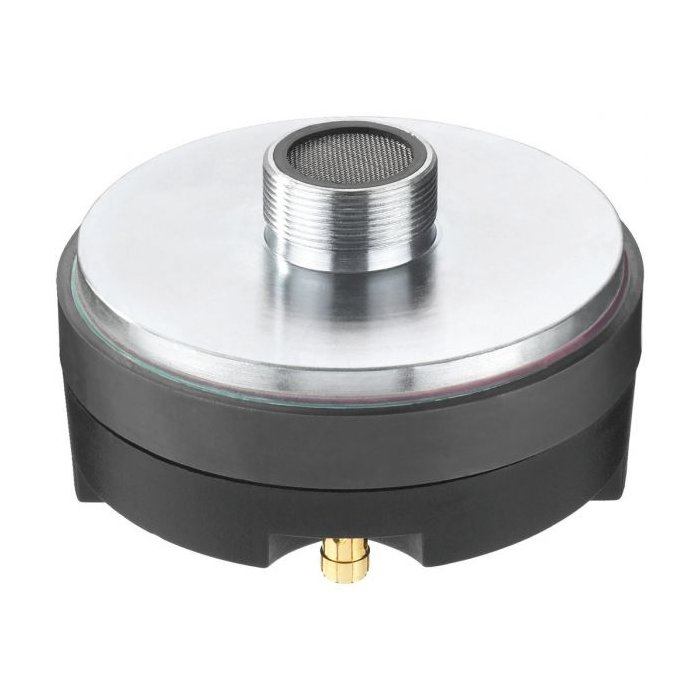

PA horn driver, 45 W, 8 Ω
- 35 mm (1⅜") štandardný závit
- Komponent reproduktorov PAB-115MK2 a PAK-115MK2
- Vhodná náhradná hlasová cievka PAB-115/VC dostupná v ponuke
- Vhodná pre horny MRH-83, MRH-170 a MRH-80
Impedance (Z): 8 Ω
Transmission technology: cable

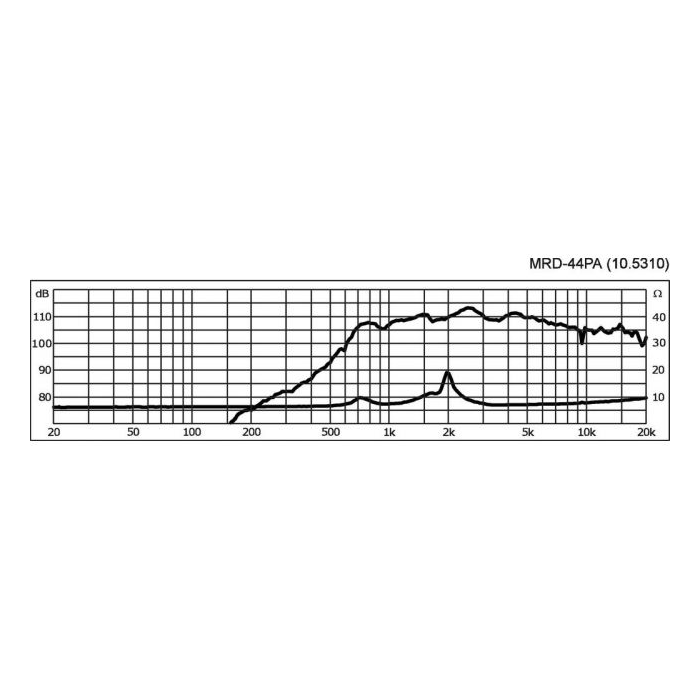

Frequency range: fx-20,000 Hz
Resonant frequency (fs): 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.): 3,500 Hz
Power rating (RMS): 45 W
Peak music power output (MAX): 90 W
SPL: 105 dB/W/m
Voice coil diameter: Ø 44.5 mm
Magnet diameter: Ø 110 mm
Mounting cutout: dep. on horn
Mounting depth: dep. on horn

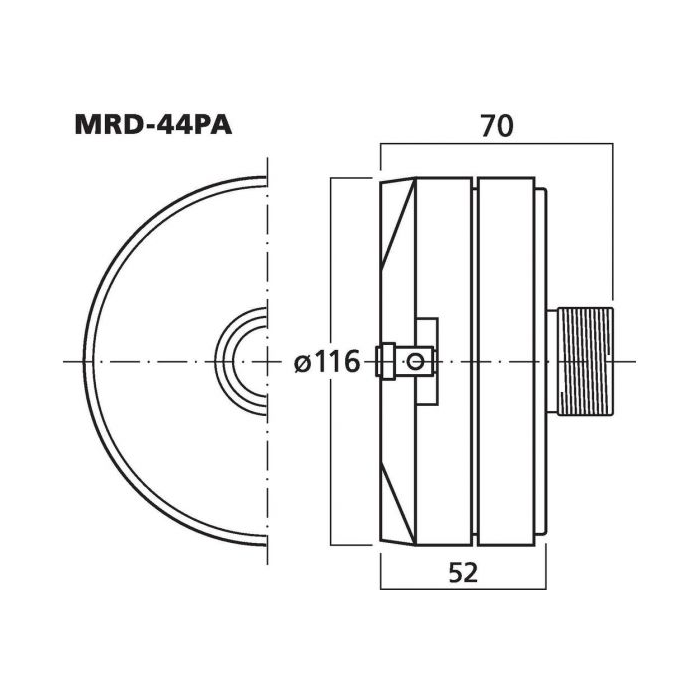

Dimensions: Ø 116 mm x 70 mm
Outside diameter: Ø 116 mm
Width: Ø 116 mm
Height: Ø 116 mm
Depth: 70 mm
Colour: silver/black
Admiss. ambient temp.: 0-40 °C
Weight: 1.472 kg
Packing unit: 1
Type of speaker: 1"
Packaging dimensions (W x H x L): 0.12 x 0.075 x 0.12 m
Gross weight: 1.514 kg
Net weight: 1.472 kg
