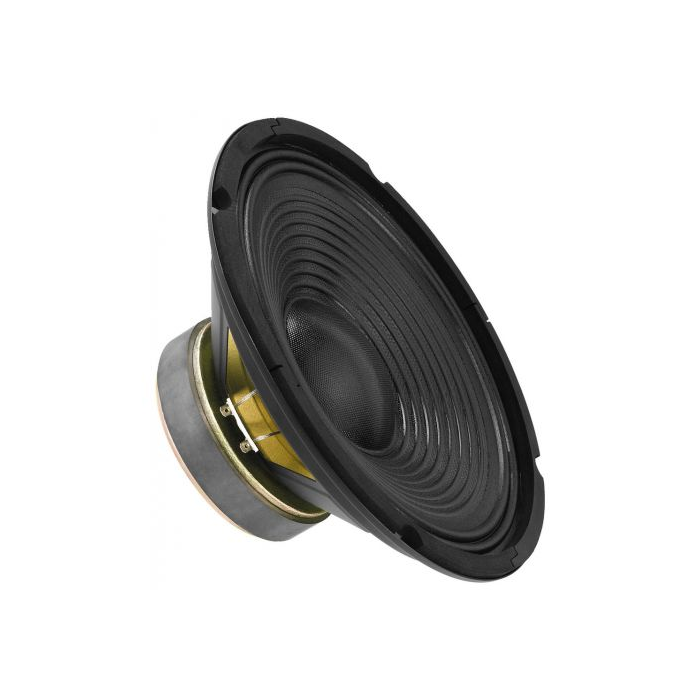

Univerzálny stredobasový reproduktor, 75 W, 8 Ω
pre stredobasové aplikácie, tiež vo výkonových reproduktorových systémoch.
Impedance (Z): 8 Ω
Transmission technology: cable

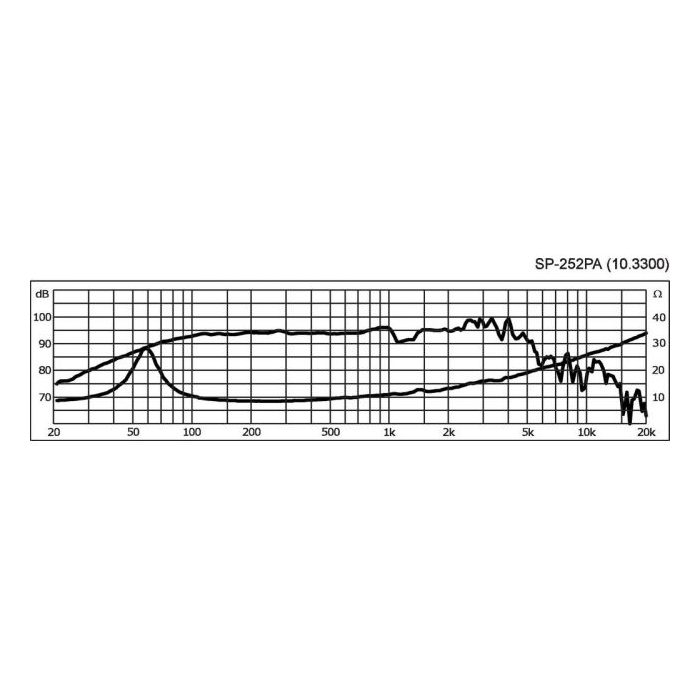

Frequency range: f3-4,500 Hz
Resonant frequency (fs): 55 Hz
Power rating (RMS): 75 W
Peak music power output (MAX): 150 W
SPL: 90 dB/W/m
Suspension compl. (Cms): 0.18 mm/N
Moving mass (Mms): 30 g
Mech. Q factor (Qms): 2.13
Electr. Q factor (Qes): 1
Total Q factor (Qts): 0.7
Equivalent volume (Vas): 30 l
DC resistance (Re): 7.7 Ω
Force factor (BxL): 9.70 Tm
Voice coil induct. (Le): 0.6 mH
Voice coil diameter: Ø 39 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 2.5 mm
Eff. cone area (Sd): 350 cm2
Magnet weight: 850 g
Magnet diameter: Ø 119 mm

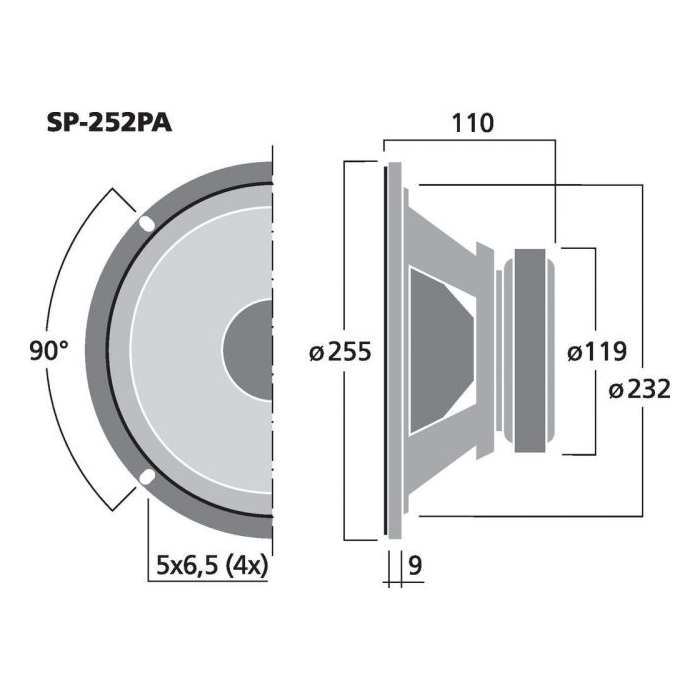

Mounting cutout: Ø 232 mm
Mounting depth: 101 mm
Dimensions: Ø 255 x 110 mm
Outside diameter: Ø 255 mm
Width: Ø 255 mm
Height: Ø 255 mm
Depth: 110 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.21 kg
Packing unit: 1
Type of speaker: 10"
Packaging dimensions (W x H x L): 0.26 x 0.12 x 0.26 m
Gross weight: 2.405 kg
Net weight: 2.21 kg
