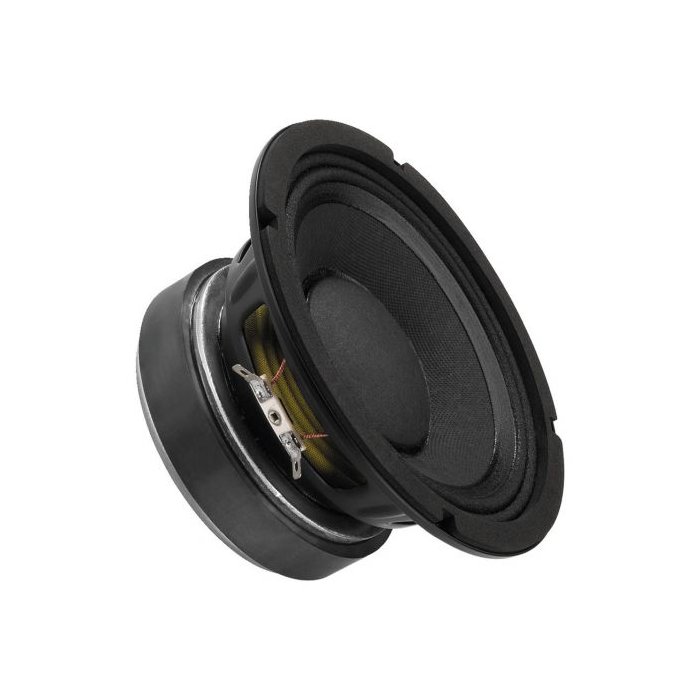

PA stredobasový reproduktor, 150 W, 8 Ω
- Pre aplikácie stredného rozsahu PA vyžadujúce vysoký výkon so súčasným použitím horn stredného a vysokého rozsahu
- Veľmi vhodný pre duálne usporiadanie
Impedance (Z): 8 Ω
Transmission technology: cable
Frequency range: f3-6,000 Hz
Resonant frequency (fs): 73 Hz
Power rating (RMS): 150 W
Peak music power output (MAX): 300 W
SPL: 93 dB/W/m
Suspension compl. (Cms): 0.31 mm/N
Moving mass (Mms): 15.2 g
Mech. Q factor (Qms): 5.31
Electr. Q factor (Qes): 0.46
Total Q factor (Qts): 0.42
Equivalent volume (Vas): 8.5 l
DC resistance (Re): 6.5 Ω
Force factor (BxL): 9.90 Tm
Voice coil induct. (Le): 0.6 mH
Voice coil diameter: Ø 50 mm
Voice coil former: Kapton
Linear excursion (X
MAX): ± 1 mm
Eff. cone area (Sd): 139 cm2
Magnet weight: 850 g
Magnet diameter: Ø 120 mm
Mounting cutout: Ø 148 mm
Mounting depth: 79 mm
Dimensions: Ø 170 mm x 86 mm
Outside diameter: Ø 170 mm
Width: Ø 170 mm
Height: Ø 170 mm
Depth: 86 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 2.16 kg
Packing unit: 1
Type of speaker: 6.5"
Packaging dimensions (W x H x L): 0.205 x 0.12 x 0.205 m
Gross weight: 2.4 kg
Net weight: 2.16 kg
