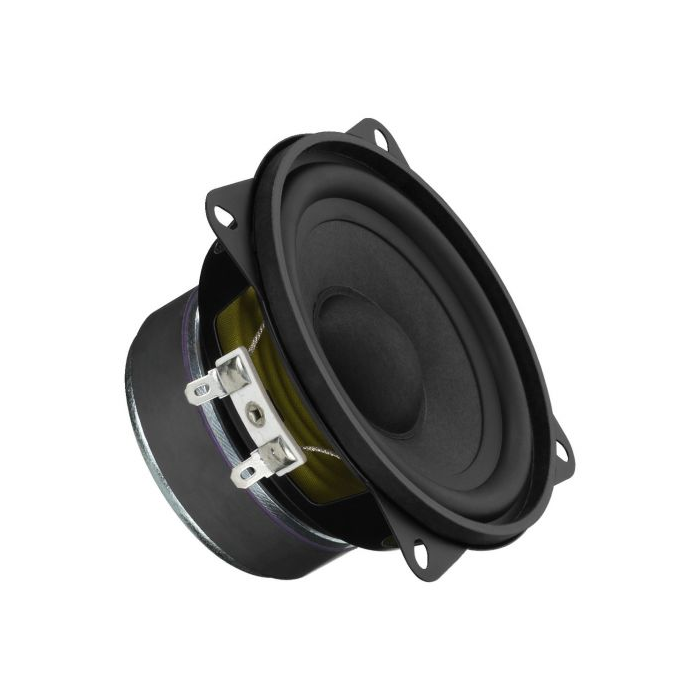

Kompaktný hi-fi stredobasový reproduktor, 25 W, 8 Ω
- Vynikajúci náhradný reproduktor rovnakej kvality ako od originálneho výrobcu zariadenia
- Papierový kužeľ s nízkou rezonanciou
- Gumený rám s dlhou životnosťou
- Long-term stable rubber surround
- Also very well-suited for use as a full range speaker
Impedance (Z): 8 Ω
Transmission technology: cable

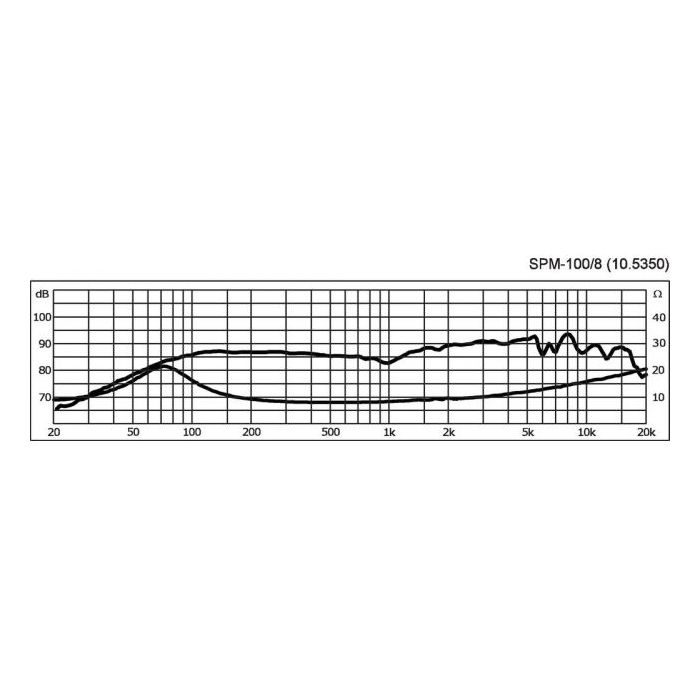

Frequency range: f3-18,000 Hz
Resonant frequency (fs): 75 Hz
Power rating (RMS): 25 W
Peak music power output (MAX): 50 W
SPL: 86 dB/W/m
Suspension compl. (Cms): 0.8 mm/N
Moving mass (Mms): 4.4 g
Mech. Q factor (Qms): 1.96
Electr. Q factor (Qes): 1.01
Total Q factor (Qts): 0.67
Equivalent volume (Vas): 4 l
DC resistance (Re): 7.2 Ω
Force factor (BxL): 4.10 Tm
Voice coil induct. (Le): 0.4 mH
Voice coil diameter: Ø 20.4 mm
Voice coil former: aluminium
Linear excursion (X
MAX): ± 1 mm
Eff. cone area (Sd): 57 cm2
Magnet weight: 220 g
Magnet diameter: Ø 70 mm

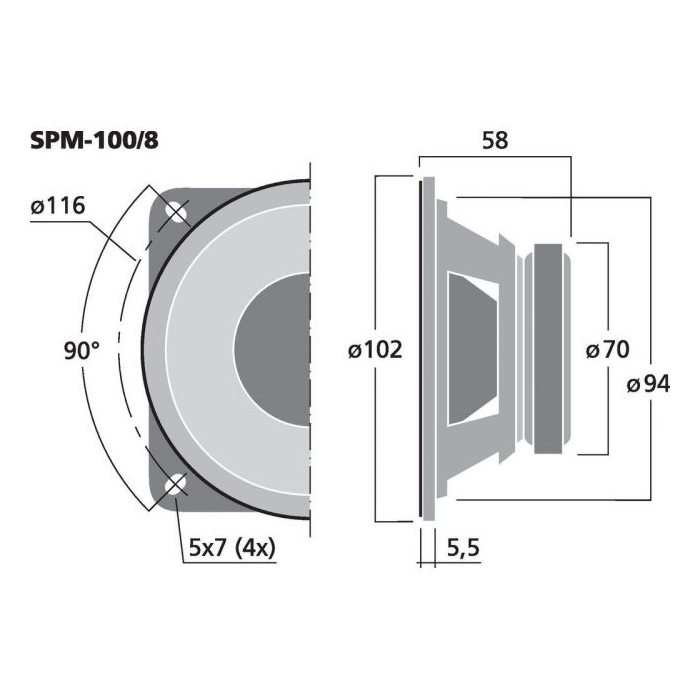

Mounting cutout: Ø 94 mm
Mounting depth: 52.5 mm
Mounting hole diameter: Ø 116 mm
Dimensions: Ø 102 mm x 58 mm
Outside diameter: Ø 102 mm
Width: Ø 102 mm
Height: Ø 102 mm
Depth: 58 mm
Colour: black
Admiss. ambient temp.: 0-40 °C
Weight: 0.538 kg
Packing unit: 1
Type of speaker: 4"
Packaging dimensions (W x H x L): 0.105 x 0.065 x 0.105 m
Gross weight: 0.57 kg
Net weight: 0.538 kg
